The Buick Verano, produced between 2016 and 2017, continues to embody Buick’s commitment to luxury, comfort, and reliability in the compact sedan market. This model is equipped with a range of sophisticated electrical components, including the fuse box and relay, which are essential for the proper functioning of various vehicle systems.
The fuse box in the Buick Verano 2016–2017 houses multiple fuses that protect individual electrical circuits from overloads and short circuits. These fuses are critical in preventing damage to sensitive components such as the lighting system, climate control, and audio system. Understanding the location and purpose of each fuse can facilitate efficient troubleshooting and maintenance.
Relays in the Buick Verano act as electrical switches that control the activation of various components, such as the starter motor, fuel pump, and cooling fan. They play a pivotal role in ensuring that electricity is delivered to these components as needed, enhancing overall vehicle performance and reliability.
In addition to the fuse box and relay, the Buick Verano 2016–2017 incorporates advanced electrical features designed to enhance comfort and convenience for both drivers and passengers. These may include technologies such as keyless entry, touchscreen infotainment systems, and driver assistance features like lane departure warning and rearview cameras.
(2014-2015) Buick Verano fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Verano 2014-2015 fuse assignment

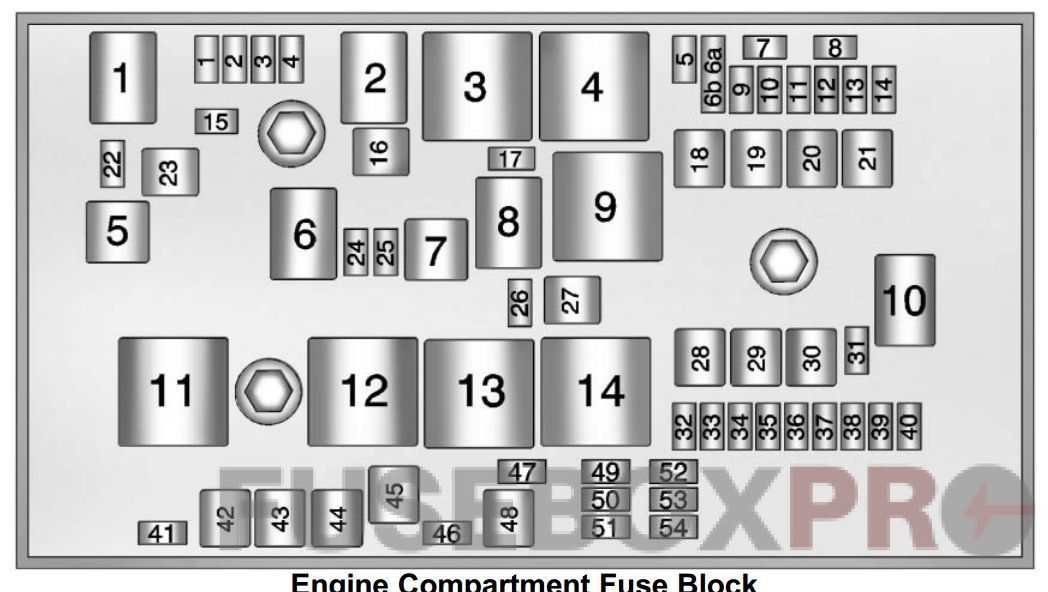

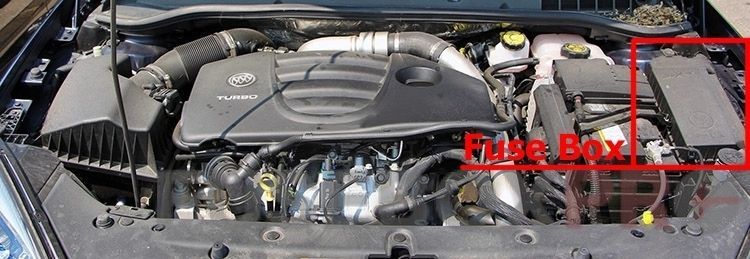

Engine Compartment Fuse Box
| Fuses | Amps | Usage |
| 1 | 20A | Engine control module |
| 2 | 7,5A | O2 sensor/ Purge solenoid |
| 3 | 15A | Ignition coils/ Injectors |
| 4 | 15A | — |
| 5 | — | — |
| 6a | — | — |
| 6b | 7,5A | Mirror defogger |
| 7 | 5A | Powertrain cooling |
| 8 | 7,5A | Mass airflow sensor/Pre – O2 sensor |
| 9 | — | — |
| 10 | 5A | Battery potential signal |
| 11 | 7,5A | — |
| 12 | — | — |
| 13 | 25A | ABS valve |
| 14 | — | — |
| 15 | 10A | Engine control module |
| 16 | 30A | Starter control |
| 17 | 10A | Transmission control module |
| 18 | 30A | Rear window defogger |
| 19 | 30A | Front power window |
| 20 | 30A | Rear power window |
| 21 | 40A | Rear electrical center |
| 22 | — | — |
| 23 | — | — |
| 24 | 15A | Right high-beam headlamp |
| 25 | 15A | Left high-beam headlamp |
| 26 | 15A | Front fog lamps |
| 27 | 50A | — |
| 28 | — | — |
| 29 | 30A | Electric parking brake |
| 30 | 60A | ABS pump |
| 31 | — | — |
| 32 | 5A | Airbag |
| 33 | — | — |
| 34 | 7,5A | — |
| 35 | 7,5A | Door switch supply/Left power window |
| 36 | 10A | A/C clutch |
| 37 | 10A | Canister vent |
| 38 | — | — |
| 39 | 20A | Fuel system control module |
| 40 | 10A | Front windshield washer |
| 41 | — | — |
| 42 | 40A | Engine cooling fan (RPO LEA) |
| 43 | 30A | Front wipers |
| 44 | — | — |
| 45 | 30A | Engine cooling fan (RPO LEA) |
| 46 | — | — |
| 47 | 15A | Horn |
| 48 | 60A | Engine cooling fan |
| 49 | 20A | Fuel pump |
| 50 | 5A | Rear vision camera |
| 51 | 7,5A | Interior rearview mirror |
| 52 | — | — |
| 53 | 7,5A | Ignition engine control module/ Transmission control module |
| 54 | 7,5A | Instrument cluster/Fuel system control module/HVAC/ Run/Crank |
| Relays | Usage |
| 1 | — |
| 2 | Starter |
| 3 | Engine control powertrain |
| 4 | Rear window defogger |
| 5 | — |
| 6 | High-beam headlamps |
| 7 | — |
| 8 | — |
| 9 | — |
| 10 | EGR/Coolant pump/ AIR solenoid valve |
| 11 | Engine cooling fan (RPO LEA) |
| 12 | Engine cooling fan (RPO LEA) |
| 13 | Engine cooling fan (RPO LEA) |
| 14 | Run/Crank |

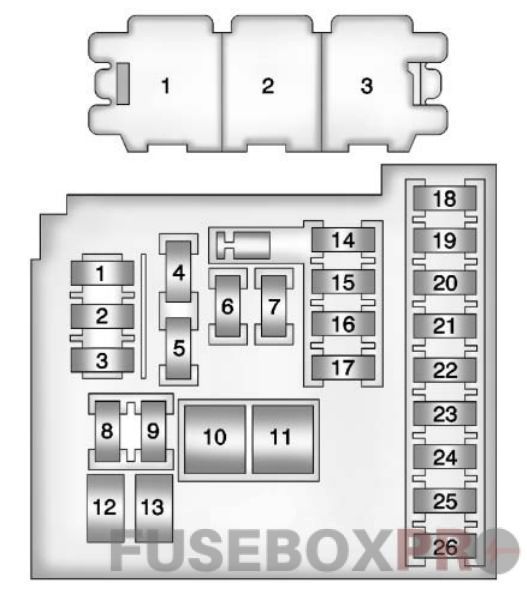

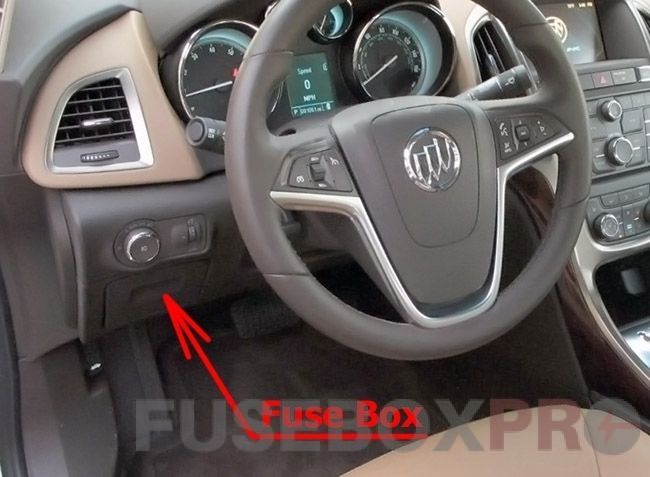

Instrument Panel Fuse box
| Fuses | Amps | Usage |
| 1 | 2A | Steering wheel controls |
| 2 | 20A | Body control module |
| 3 | 20A | Body control module |
| 4 | 20A | Infotainment system |
| 5 | 10A | Information display/Parking assist |
| 6 | 20A | Cigar lighter |
| 7 | 20A | Power outlet |
| 8 | 30A | Body control module |
| 9 | 30A | Body control module |
| 10 | 30A | Body control module |
| 11 | 40A | Interior fan |
| 12 | 25A | Driver power seat |
| 13 | — | — |
| 14 | 7,5A | Diagnostic connector |
| 15 | 10A | Airbag |
| 16 | 10A | Central locking system/ Tailgate |
| 17 | 10A | A/C system |
| 18 | 30A | Infotainment system |
| 19 | 30A | Body control module |
| 20 | 5A | Passenger power seat |
| 21 | 5,5A | Instrument cluster |
| 22 | 2/5A | Ignition/ Electronic key system |
| 23 | 20A | Body control module |
| 24 | 20A | Body control module |
| 25 | — | — |
| 26 | — | — |
| Relays | Usage |
| 1 | Trunk open |
| 2 | Door security |
| 3 | Power outlet |

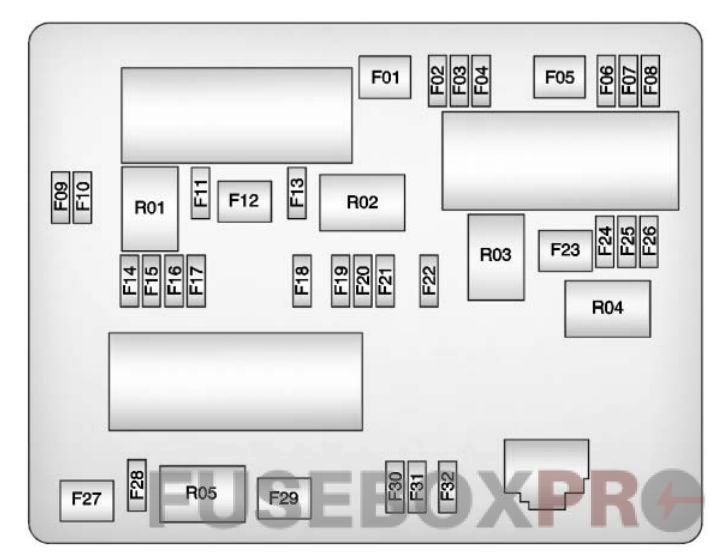

Rear Compartment Fuse Box

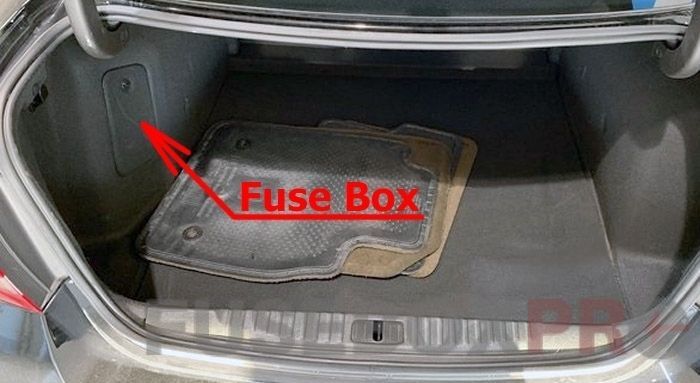

The rear compartment fuse box, if equipped, is on the left side of the trunk behind a cover.
| Fuses | Amps | Usage |
| F01 | — | — |
| F02 | — | — |
| F03 | 5A | Rear parking assist |
| F04 | — | — |
| F05 | — | — |
| F06 | — | — |
| F07 | 10A | — |
| F08 | — | — |
| F09 | — | — |
| F10 | — | — |
| F11 | — | — |
| F12 | — | — |
| F13 | — | — |
| F14 | — | — |
| F15 | — | — |
| F16 | 5A | Rear vision camera |
| F17 | — | — |
| F18 | — | — |
| F19 | 7,5A | Heated steering wheel |
| F20 | 25A | Sunroof |
| F21 | 25A | Heated seats |
| F22 | — | — |
| F23 | — | — |
| F24 | — | — |
| F25 | 5A | Side blind zone alert |
| F26 | 30A | — |
| F27 | 30A | Passive entry/ Passive start |
| F28 | — | — |
| F29 | — | — |
| F30 | — | — |
| F31 | 30A | Amplifier |
| F32 | — | — |
| Relays | Usage |
| R01 | Run/Crank |
| R02 | — |
| R03 | — |
| R04 | — |
| R05 | — |
Conclusion
For owners and enthusiasts of the Buick Verano 2016–2017, understanding the electrical components and their functions can contribute to effective maintenance practices. Regular inspection of the fuse box and relay, along with other electrical systems, ensures the vehicle operates smoothly and safely. This knowledge underscores Buick’s dedication to delivering a superior driving experience through innovative automotive technology.
