(1980-1985) Buick Skylark fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Skylark 1980-1985 fuse assignment
Year of production: 1980, 1981, 1982, 1983, 1984, 1985

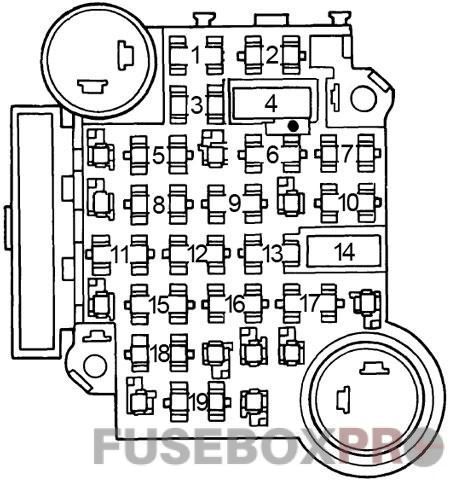

Fuse box diagram
| No. | Amps | Fuse Assignment |
| 1 | 5A | Instrument panel, lights on reminder and console light |
| 2 | 20A | Choke heater and cooling fan |
| 3 | — | — |
| 4 | 30A | Circuit breaker: Power windows |
| 5 | — | — |
| 6 | 25A | Air conditioning blower and compressor, heater and trunk release |
| 7 | 10A | Electronic Control Module |
| 8 | — | — |
| 9 | — | — |
| 10 | 20A | Stop and hazard lights |
| 11 | 20A | Air conditioning, defogger, seat belt warning, charge indicator and computer command control |
| 12 | 20A | Front parking and marker lights. Rear parking, marker and license lights |
| 13 | — | — |
| 14 | 30A | Circuit breaker: Defogger, power door locks and power seats |
| 15 | 20A | Back-up and turn signal lights, and Idle stop solenoid |
| 16 | 20A | Air conditioning, cigar lighter, clock, courtesy, trunk and vanity lights, ignition key warning buzzer, lights on reminder, power antenna, power door locks and radio capacitor |
| 17 | — | — |
| 18 | 10A | Radio, cruise control and power antenna |
| 19 | 25A | Windshield wiper/washer and wiper/washer delay |
| Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor. | ||
