The Buick Skylark, produced from 1975 to 1979, stands as a testament to Buick’s legacy of crafting stylish and reliable automobiles during that era. The vehicle boasted a range of electrical components crucial to its operation, including the fuse box and relays. These components were pivotal in managing various electrical systems within the car, such as lighting, climate control, and engine management.
Understanding the fuse box and relay systems in the Buick Skylark 1975–1979 is important for both maintenance and troubleshooting. The fuse box housed fuses designed to protect electrical circuits from overloads, thereby safeguarding the vehicle against potential electrical failures. Meanwhile, relays served as electrically operated switches that controlled the flow of current to specific components, ensuring efficient operation and reliability.
In addition to these electrical components, the Buick Skylark of this era featured advanced technologies for its time, aimed at enhancing driver comfort and convenience. These may have included amenities such as power windows, air conditioning, and premium audio systems, all of which relied on a robust electrical infrastructure for optimal performance.
(1975–1979) Buick Skylark fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Skylark 1975–1979 fuse assignment
Year of production: 1975, 1976, 1977, 1978, 1979

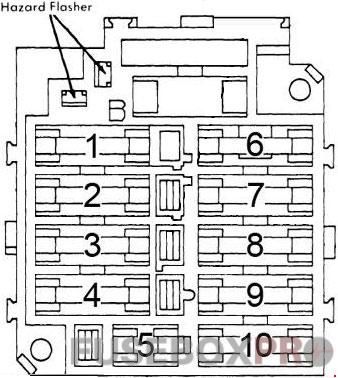

Fuse box diagram
| No. | A | Circuit Protected |
| 1 | 30A | Power Accessory |
| 2 | 20A | Clock, cigar lighter, courtesy light |
| 3 | 20A | Tail lights |
| 4 | 20A | Stop lights, hazard warning |
| 5 | 4A | Instrument illumination |
| 6 | 25A | Heater and air conditioner |
| 7 | 20A | Turn signals, back-up lights |
| 8 | 10A | Gauges |
| 9 | 10A | Radio, TCS solenoid |
| 10 | 25A | Windshield wiper and washer |
| Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits.Windshield Wiper — Integral with windshield wiper motor. | ||
Conclusion
For owners and enthusiasts of classic Buick Skylark models, understanding the intricacies of the fuse box and relay systems is crucial in maintaining these vehicles’ historical value and operational integrity. Proper maintenance and occasional inspection of these components were essential practices to uphold the Skylark’s reputation for reliability and durability in its era of automotive innovation.
