The Buick Skyhawk, produced between 1975 and 1980, epitomized Buick’s foray into the compact car market during that era. This model incorporated various essential electrical components, including the fuse box and relays, which were integral to the vehicle’s electrical system.
The fuse box in the Buick Skyhawk 1975–1980 housed a series of fuses designed to protect electrical circuits from overloads and short circuits. These fuses safeguarded critical components such as headlights, taillights, power windows, and the radio. Understanding the location and function of each fuse is crucial for diagnosing and resolving electrical issues efficiently.
Relays in the Buick Skyhawk 1975–1980 acted as electrically operated switches that controlled the flow of electricity to specific components. These relays were essential for systems such as the starter motor, fuel pump, and cooling fans, ensuring reliable operation and optimal performance. Regular inspection and maintenance of relays were necessary to maintain the vehicle’s functionality and reliability.
In addition to these components, the Buick Skyhawk of this era likely featured advanced electrical technologies for its time, including electronic ignition systems and climate control. These amenities relied on a robust electrical infrastructure to deliver enhanced comfort and convenience to occupants.
(1975–1980) Buick Skyhawk fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Skyhawk 1975–1980 fuse assignment
Year of production: 1975, 1976, 1977, 1978, 1979, 1980

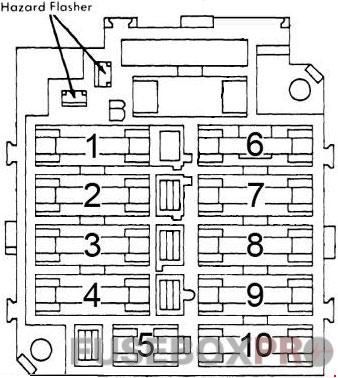

Fuse box diagram
| No. | Amps | Circuit Protected |
| 1 | 30A | Electric fuel pump |
| 2 | 20A | Clock, cigar lighter, courtesy light |
| 3 | 20A | Tail lights |
| 4 | 20A | Stop lights, hazard warning |
| 5 | 4A | Instrument illumination |
| 6 | 25A | Heater and air conditioner |
| 7 | 20A | Turn signals, back-up lights |
| 8 | 10A | Gauges |
| 9 | 10A | Radio, TCS solenoid |
| 10 | 25A | Windshield wiper and washer |
| Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits.Windshield Wiper — Integral with windshield wiper motor. | ||
Conclusion
For owners and enthusiasts of the Buick Skyhawk 1975–1980, understanding the fuse box and relay systems is important for vehicle maintenance. Regular inspection and replacement of fuses and relays helped ensure the vehicle’s longevity and reliability, preserving its value as a reliable and enjoyable mode of transportation during its production years.
