(1978–1981) Buick Regal fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Buick Regal 1978–1981 fuse assignment
Year of production: 1978, 1979, 1980, 1981

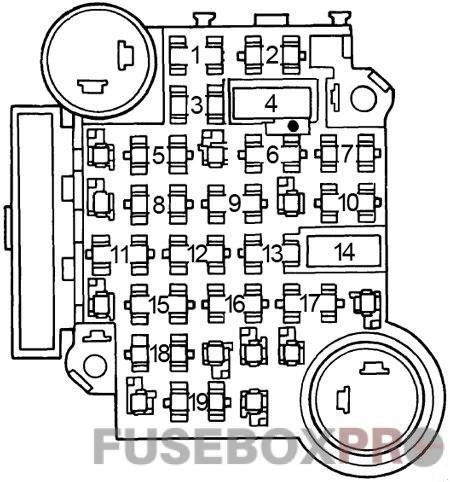

Fuse box diagram
| Fuse | [A] | Protected Component |
| 1 | 5 | Instrument illumination and headlight warning |
| 2 | 20 | Electric choke (V6), closed loop |
| 3 | 5 | Instrument illumination and headlight warning |
| 4 | 30 | Circuit breaker: Power windows and roof |
| 5 | — | — |
| 6 | 25 | Heater, air conditioning, pulse wipers and deck lid |
| 7 | 10 | Electronic Control Module |
| 8 | — | — |
| 9 | 25 | Windshield wiper and washer |
| 10 | 20 | Hazard and stop lights |
| 11 | 20 | Seat belt light and buzzer, heated back light relay, tailgate window release, map light and fuel economy light, cruise control, rear defogger blower, instrument gauges and indicator lights, electric choke |
| 12 | 20 | Tail, side marker, parking and license lights, clock radio |
| 13 | 10 | Radio |
| 14 | 30 | Circuit breaker: Power seats, door locks and heated back light |
| 15 | 20 | Turn signal and back-up lights |
| 16 | 20 | Clock, cigar lighter, glove box light, key buzzer, power antenna, clock radio, radio capacitor, dome and sail panel lights, trunk light, reading light, headlight on warning and door locks |
| 17 | — | — |
| 18 | — | — |
| 19 | 10 | Gauges, cruise control, torque converter clutch and indicator light |
| Circuit Breaker: Headlight Circuit — A thermo circuit breaker is incorporated in the headlight switch assembly to protect headlight circuits. Windshield Wiper — Integral with windshield wiper motor. | ||
Conclusion
For owners and enthusiasts of classic Buick Regal models from 1978-1981, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Buick’s craftsmanship and innovation in the automotive industry during that era.
