(2010-2015) BMW X1 (E84) fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.

BMW X1 (E84) 2010-2015 fuse assignment

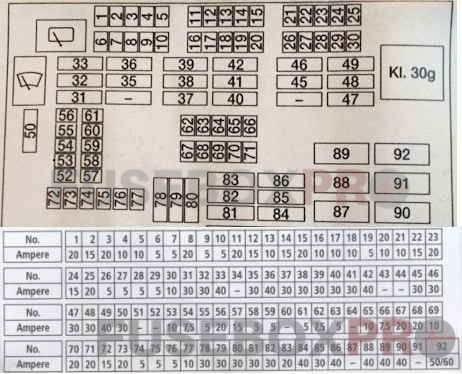

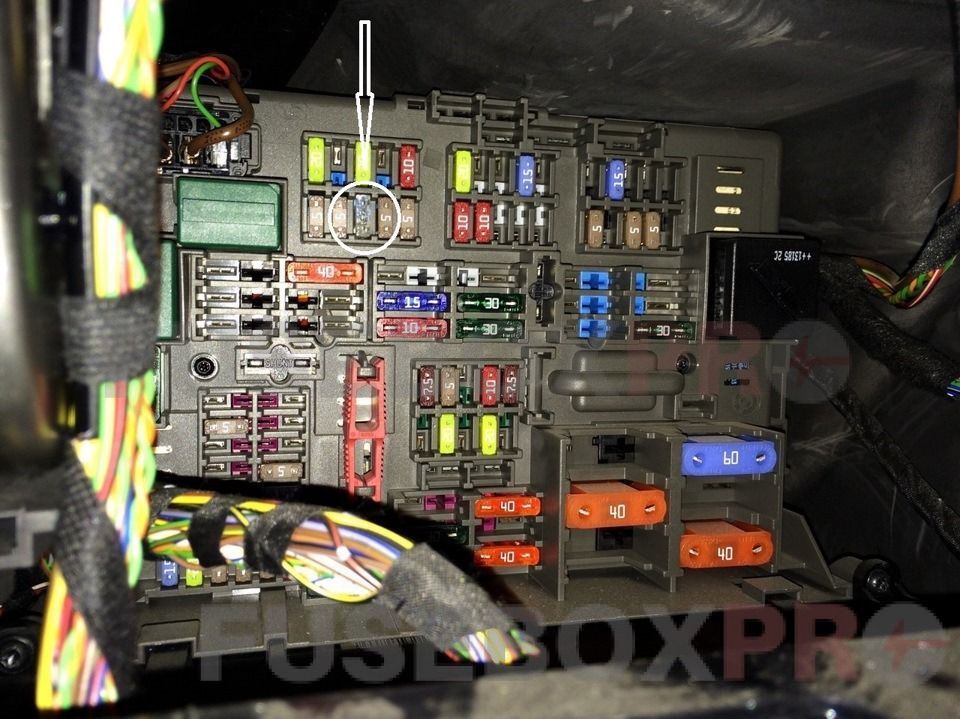

Passenger Compartment Fuse Box

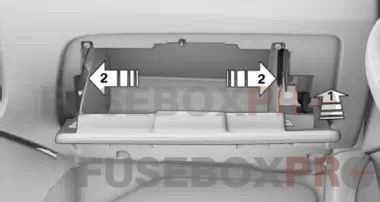

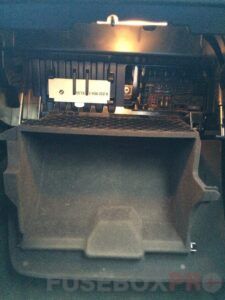

Access to fuse box:

1. Open the glove compartment.
2. Release the damper from the bottom holder by applying pressure toward the front, arrow 1.
3. Unlock the glove compartment by pressing on both tabs, arrow 2, and fold down.

No.	Amps	Assignment/Designation
1	20A	Rear Intermittent Wipe/Wash Control Unit
2	–	–
3	20A	Electrochromic Interior Rear View Mirror
4	10A	N20, N46, N52, N55: DME Control Unit (16i, 18i, 20i, 28i, 35i)
5	10A	Steering Column Switch Center
6	5A	AUC Sensor, DC/DC Converter
7	5A	Park Distance Control (PDC), Roof Function Control Centre
8	20A	Front Cigar Lighter, Rear Centre Console Charging Socket 1 & 2, Luggage Compartment Socket Outlet
9	5A	Driver’s Switch Cluster, Telephone Transceiver, Telephone Retrofit Packages Connector
10	5A	Driver’s Seat Heating Module, Passenger’s Seat Heating Module
11	20A	N20, N55: DME Control Unit
	20A	N46 TU 2: Fuel Injectors
	20A	N52: Oil Condition Sensor, DISA Actuator 1 & 2, Fuel Tank Vent Valve, Crankshaft Sensor, Air Mass Flow Sensor
12	–	–
13	10A	TCU, ULF, ULF-SBX, ULF-SBX-H, Combox, Eject Box, USB Hub
14	15A	Car Information Computer (CIC), Radio (without CIC)
15	20A	Audio Amplifier
16	10A	N20, N55: DME Control Unit
	10A	N52: Radiator Shutter Drive Unit, E-Box Fan
	10A	N46 TU 2: Crankshaft Sensor, Fuel Tank Vent Valve, Hot-Film Air Mass Meter, E-Box Fan
17	10A	N20, N46, N52, N55:  Diagnostic Module for Fuel Tank Leakage, Exhaust Flap
18	10A	Video Module, Digital Tuner
19	5A	CD Changer
20	10A	Driver’s/Passengers’s Lumbar Support Switch, Switch for Driver’s/Passenger’s Seat Backrest width Adjustment, Valve Block for Driver’s/Passenger’s Seat Backrest width Adjustment, Front Left/Right Lumbar Support Valve Block
21	–	–
22	15A	Transmission Control, Transmission Control DKG
23	–	–
24	–	–
25	20A	Panorama Glass Roof
26	5A	Transfer Box Control Unit, Dynamic Stability Control (DSC)
27	5A	Tyre Pressure Control (RDC)
28	5A	Electric Fan Cut-Out Relay, DC/DC Converter
29	5A	Korea: Tank Vent Shutoff Valve
30	–	–
31	30A	Trailer Module
32	30A	Trailer Module
33	40A	except N20: Electric Coolant Pump
	40A	N47: Fuel Heater
34	–	–
35	–	–
36	40A	Car Access System
37	10A	N20: DME Control Unit
	30A	N46 TU 2: Oxygen Sensor before Catalytic Converter, Oxygen Sensor 2 before Catalytic Converter, Oxygen Sensor after Catalytic Converter, Oxygen Sensor 2 after Catalytic Converter
	30A	N52: Electric Coolant Pump, Characteristic Map Thermostat, Intake Camshaft Sensor, Exhaust Camshaft Sensor, Intake Vanos Solenoid Valve, Exhaust Vanos Solenoid Valve, Oil Pressure Control Valve
38	15A	N20: DME Control Unit
	30A	N46 TU 2: Ignition Coils
	30A	N52: Oxygen Sensor before Catalytic Converter, Oxygen Sensor 2 before Catalytic Converter, Oxygen Sensor after Catalytic Converter, Oxygen Sensor 2 after Catalytic Converter, Crankshaft Breather Heating 1
39	30A	N46 TU 2: DME Control Unit, Characteristic Map Thermostat, Intake Camshaft Sensor, Exhaust Camshaft Sensor, Intake Vanos Solenoid Valve, Exhaust Vanos Solenoid Valve, Oil Level Sensor, Crankcase Breather Heating
	30A	N52: Fuel Injectors, Ignition Coils, Interference Suppression Capacitor for Ignition Coils
40	30A	Transfer Box Control Unit
41	30A	Driver’s Window Motor, Footwell Module
42	40A	Audio Amplifier (HiFi System Professional, BMW Individual High-End Audio System, Harman Kardon Surround Sound System)
43	–	–
44	–	–
45	30A	Passenger’s Seat Adjustment Switch
46	30A	Driver’s Seat Module
47	30A	Right Lockout Circuit for Rear Window Defogger
48	30A	Headlight Washer Pump
49	30A	Passenger’s Seat Module
	40A	Active Steering
50	30A	Wiper Motor
51	–	–
52	–	–
53	–	–
54	7.5A	Siren and Tilt Alarm Sensor
55	5A	Car Access System
56	20A	–
57	15A	Horn
58	5A	All-Round Vision Camera
59	5A	Combox, Telematics Control Unit (TCU) (USA), Eject Box (USA)
60	–	–
61	5A	Comfort Access Control Unit, Driver’s Side Outer Door Handle Electronic Module, Passenger’s Side Outer Door Handle Electronic Module
62	7.5A	Roof Function Control Centre
63	5A	Gear Indicator Lighting, Aerial Diversity (Noise Suppressor Filter)
64	–	–
65	10A	Longitudinal Dynamics Management, Gear Indicator Lighting (Automatic Transmission), Gear Selector Switch (Double Clutch Transmission)
66	7.5A	Driver’s Switch Cluster, Passenger’s Side Outside Mirror
67	20A	Electric Fuel Pump
68	20A	Driver’s Seat Heating Module
69	–	–
70	20A	Fuel Pump Control (EKPS)
71	20A	Trailer Socket
72	15A	Driver’s Door System Lock
73	15A	Passenger’s Door System Lock
74	5A	Instrument Cluster Control Unit
75	5A	Steering Column Switch Cluster
76	10A	Central Information Display
77	10A	Luggage Compartment Light, Glove Compartment Light, Heating/Air Conditioning System
78	30A	Rear Driver’s Side Power Window Motor
79	30A	–
80	30A	Rear Passenger’s Side Power Window Motor
81	30A	Driver’s Window Motor
82	30A	Dynamic Stability Control (DSC – without Automatic Engine Start-Stop), DC/DC Converter (with Automatic Engine Start-Stop)
83	–	–
84	40A	Footwell Module
85	30A	DC/DC Converter
86	40A	Footwell Module
87	–	–
88	40A	Blower Output Stage
89	40A	Secondary Air Pump Relay
90	40A	Dynamic Stability Control (DSC)
91	15A	Passenger’s Door System Lock
92	50A	Fan 400W: Electric Fan Cut-Out Relay
	60A	Fan 600W: Electric Fan Cut-Out Relay
Relay
R1	Rear Window Wiper
R2	Wiper (Relay No.1)
R3	Terminal 30G
R4	Wiper (Relay No.2)
R5	Petrol: Digital Motor Electronics (DME) Main
R6	Headlight Cleaning System
R7	Fuel Pump

• Petrol Engines:
     sDrive16i – 1.6 Turbo (N20B16)
     sDrive18i – 2.0 L (N46B20)
     sDrive20i, sDrive28i & xDrive28i – 2.0 Turbo (N20B20)
     xDrive25i & xDrive28i (’11-’15) – 3.0 L (N52B30)
     xDrive35i – 3.0 Turbo (N55B30)
• Diesel Engines:
     sDrive16d, sDrive18d, sDrive20d, sDrive20d EfficientDynamics – 2.0 Turbo (N47D20)
     xDrive18d, xDrive20d – 2.0 Turbo (N47D20)
     xDrive23d, xDrive25d – 2.0 Twin-Turbo (N47D20)

Additional Fuses

No.	Amps	Assignment/Designation

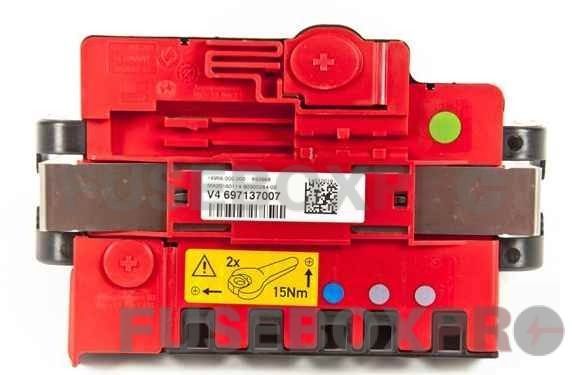

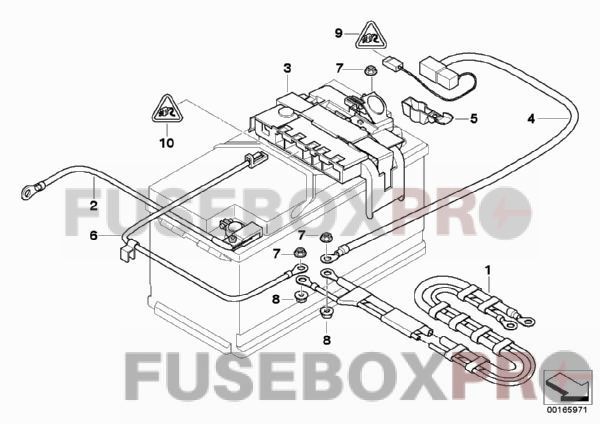

Main Fuse Box (Battery)
101	250A	Passenger Compartment Fuse Box
102	100A	Jump Start Terminal Point (DDE Main Relay)
103	100A	Electromechanical Power Steering
104	100A	Electric Auxiliary Heater (Diesel)
105	–	Battery Sensor
Dynamic Stability Control (DSC)
Location
26	5A	with Start-Stop: Dynamic Stability Control (DSC)

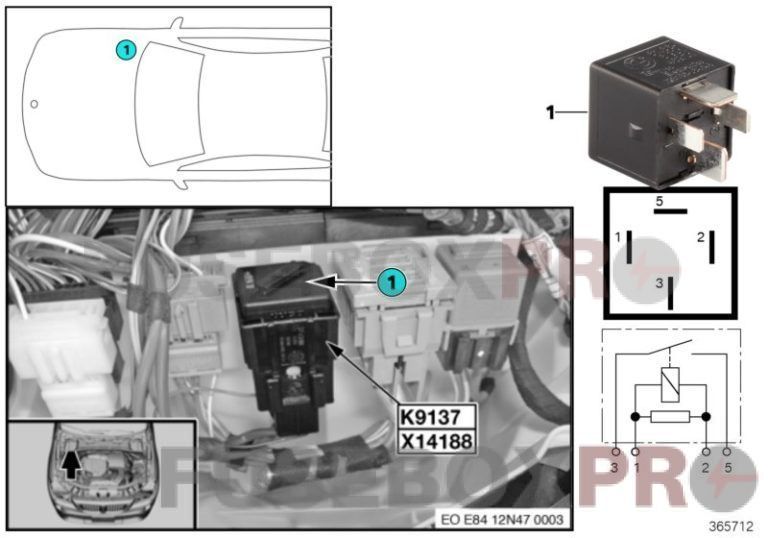

Engine Compartment Fuses (N20, N55)
Location
8680	–	–
8681	15A	N20: Digital Motor Electronics (DME) Control Unit
	20A	N55: Digital Motor Electronics (DME) Control Unit
8682	20A	N20: Digital Motor Electronics (DME) Control Unit
	15A	N55: Digital Motor Electronics (DME) Control Unit
8683	40A	N20: Digital Motor Electronics (DME) Control Unit
	40A	N55: Valvetronic Relay
8684	–	–
8685	30A	Coolant Pump 200W (N20): Electric Coolant Pump
	50A	Coolant Pump 400W (N20): Electric Coolant Pump
Relay
R1	Variable Valve Gear
R2	Ignition and Fuel Injection
Engine Compartment Fuses (N52)
Location
01	30A	Ignition Coils, Interference Suppression Capacitor for Ignition Coils
02	30A	Electric Coolant Pump, Characteristic Map Thermostat, Intake Camshaft Sensor, Exhaust Camshaft Sensor, Intake Vanos Solenoid Valve, Exhaust Vanos Solenoid Valve
03	20A	Digital Motor Electronics (DME) Control Unit, Oil Condition Sensor, Disa Actuator No.1 & 2, Fuel Tank Vent Valve, Crankshaft Sensor, Air Mass Flow Sensor
04	10A	Oxygen Sensor No.1 & 2 before Catalytic Converter, Oxygen Sensor No.1 & 2 after Catalytic Converter, Crankshaft Breather Heating
05	30A	Fuel Injectors Relay
06	10A	Secondary Air Pump Relay, Exhaust Flap, E-Box Fan, Diagnostic Module for Fuel Tank Leakage (USA), Secondary Air – Hot-Film Air-Mass Meter
09	30A	Electric Coolant Pump
Relay
R1	Digital Motor Electronics (DME)
R2	Fuel Injectors
07	40A	Location: VVT Relay
10	5A	Location: Engine Breather Heating
Relay
R3	Location: Crankcase Ventilation Heater
R4	Location: Electric Fan Cutoff
R5	Location: VVT
Engine Compartment Fuses (Diesel N47)
Location
01	20A	Boost Pressure Adjuster 1, Throttle Valve, Camshaft Sensor, Rail Pressure Control Valve, Volume Control Valve
	20A	25d: Rail Pressure Control Valve, Volume Control Valve, Camshaft Sensor, Turbine Control Valve, Changeover Valve Low Pressure Compressor Bypass Flap, Wastegate Valve
02	20A	Exhaust Recirculation Actuator, Hot-Film Air Mass Meter, Exhaust Recirculation Cooler Bypass, Oxygen Sensor before Catalytic Converter, Preheating Control Unit, Oil Condition Sensor
	20A	25d: Oil Level Sensor, Exhaust Recirculation Cooler Bypass Solenoid Valve, Preheating Control Unit, Compressor Bypass Valve, Engine Mount Electrical Changeover Valve, Air Mass Flow Sensor, Oxygen Sensor before Catalytic Converter
03	30A	Digital Diesel Electronics (DDE) Control Unit
04	10A	E-Box Fan (except 25d), Crankcase Breather Heating
05	–	–
Relay
R1	Electric Fan Cutoff
R2	Digital Diesel Electronics (DDE) Control Unit (Main Relay)
