The BMW 5-Series, spanning model years 2011 to 2017 and encompassing variants F10, F11, F07, and F18, epitomizes luxury and performance in the sedan and Gran Turismo segments. Understanding the fuse box and relay diagrams of these models is crucial for maintaining and troubleshooting their sophisticated electrical systems. This article delves into the locations, functions, and importance of these components, offering insights into the BMW 5-Series’ electrical architecture.
(2011-2017) BMW 5-Series (F10/F11/F07/F18) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
BMW 5-Series (F10/F11/F07/F18) 2011-2017 fuse assignment
Fuse box in the glove compartment
Fuse Box Location
Open the glove compartment, remove the cover.
Fuse box diagram

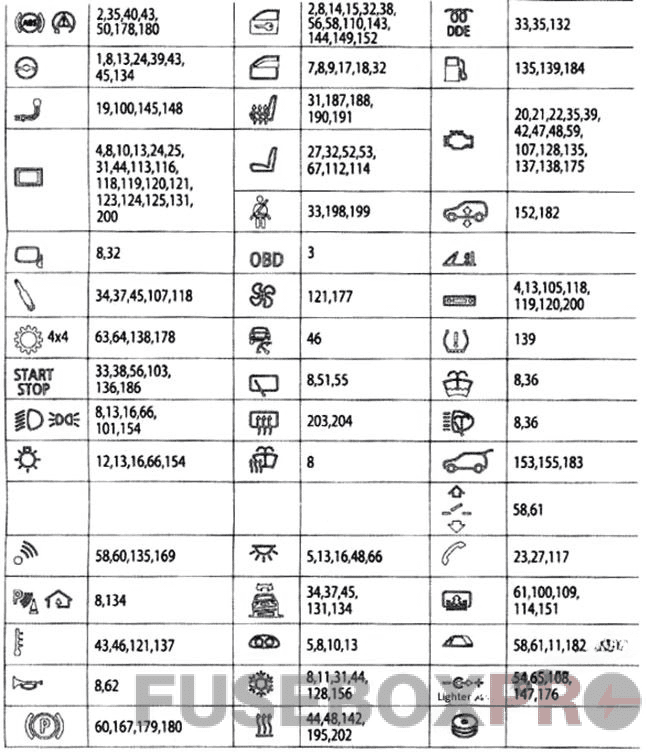

Assignment of the fuses
Fuse layout may differ!

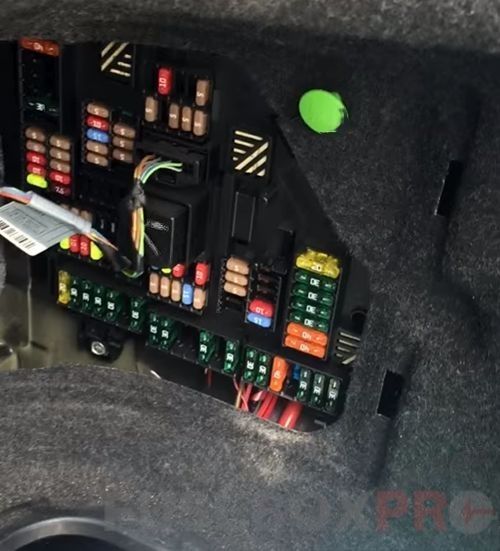

Fuse box in the luggage compartment

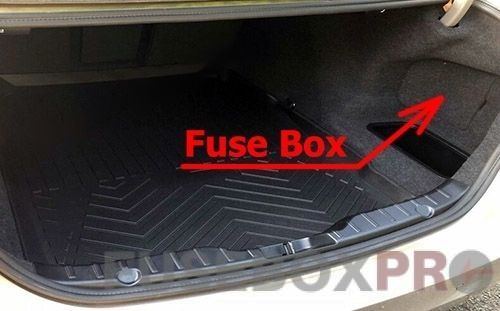

Fuse Box Location
It is located on the right side, behind the cover.

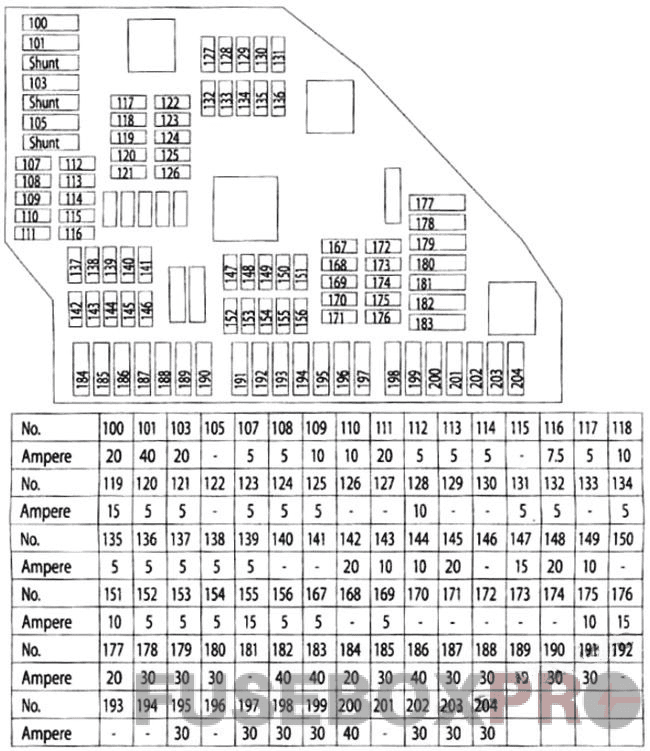

Diagram
Assignment of the fuses
Fuse layout may differ!
Exploring the fuse box and relay diagrams of the BMW 5-Series (F10/F11/F07/F18) 2011-2017 enhances comprehension of its intricate electrical infrastructure. Proper maintenance and understanding of these components are essential for ensuring the vehicle’s reliability, performance, and electrical safety.
