(1996-2003) BMW 5-Series (E39) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
BMW 5-Series (E39) 1996-2003 fuse assignment

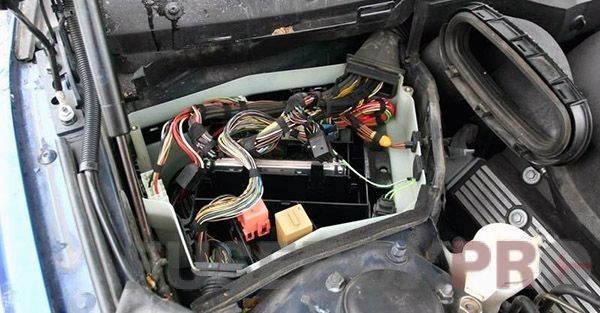

Fuse box in the engine compartment
Fuse Box Location

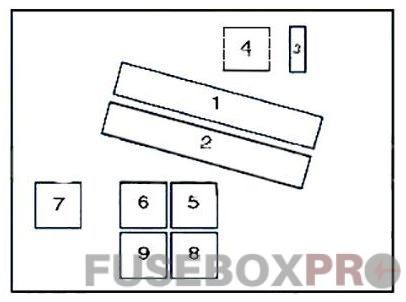

Diagram (type 1)
Assignment of the fuses in the engine compartment (type 1)
| № | Component |
|---|---|
| 1 | Engine control module |
| 2 | Transmission control module |
| 3 | Engine control module fuse |
| 4 | Engine control module relay |
| 5 | Windscreen wiper motor relay I |
| 6 | Windscreen wiper motor relay II |
| 7 | Air conditioning condenser blower motor relay I |
| 8 | Air conditioning condenser blower motor relay III |
| 9 | ABS relay |

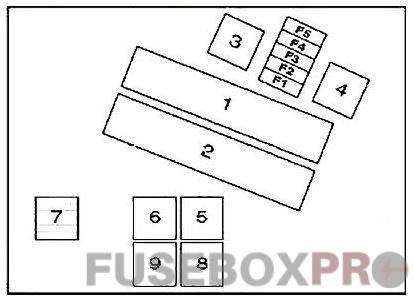

Diagram (type 2)
Assignment of the fuses in the engine compartment (type 2)
| № | A | Component |
|---|---|---|
| 1 | Engine control module(ECM) | |
| 2 | Transmission control module(TCM) | |
| 3 | Engine control (EC)relay | |
| 4 | Ignition coil relay- except 520i (22 6S 1)/525i/530i | |
| 5 | Windscreen wiper motor relay 1 | |
| 6 | Windscreen wiper motor relay2 | |
| 7 | AC condenser blower motor relay 1 (until 03/98) | |
| 8 | AC condenser blower motor relay 3 (until 03/98) | |
| 9 | Secondary air injection (AIR) pump relay | |
| F1 | 30A | Engine control module(ECM), evaporative emission (EVAP) canister purge valve, mass airflow (MAF) sensor, camshaft position (CMP)sensor1 .engine coolant thermostat-535i/540i |
| F2 | 30A | Secondary air injection (AIR)pump, intake manifold air control solenoid, injectors (except 520i (22 6S1)/525i/530i),engine control module(ECM), evaporative emission (EVAP) canister purge valve, camshaft position (CMP) actuator 1 &2, idle speed control (ISC) actuator |
| F3 | 20A | Crankshaft position (CKP) sensor, camshaft position (CMP)sensorl &2, mass airflow(MAF)sensor |
| F4 | 30A | Heated oxygen sensors(H02S), transmission control module (TCM) |
| F5 | 30A | Ignition coil relay-except 520i (22 6S1)/525i/530i |
Fuse box in the glove compartment

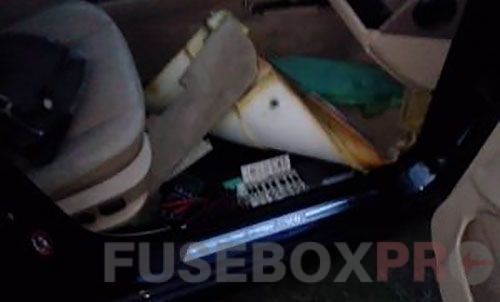

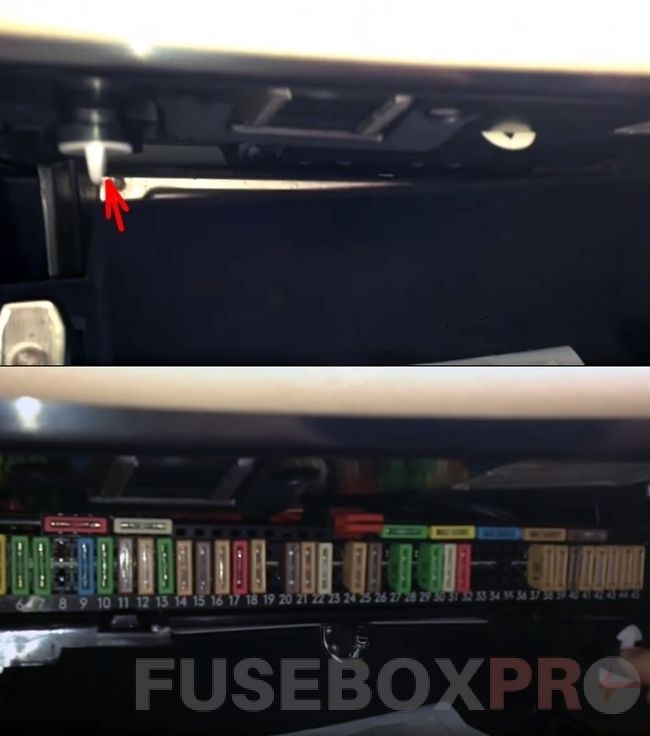

Fuse Box Location
Open the glove compartment, turn the two clamps to the left, and pull the panel down.

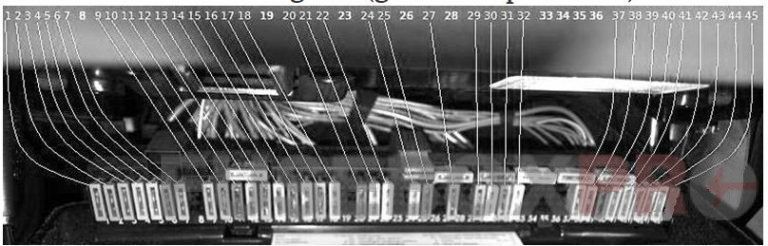

Fuse box diagram

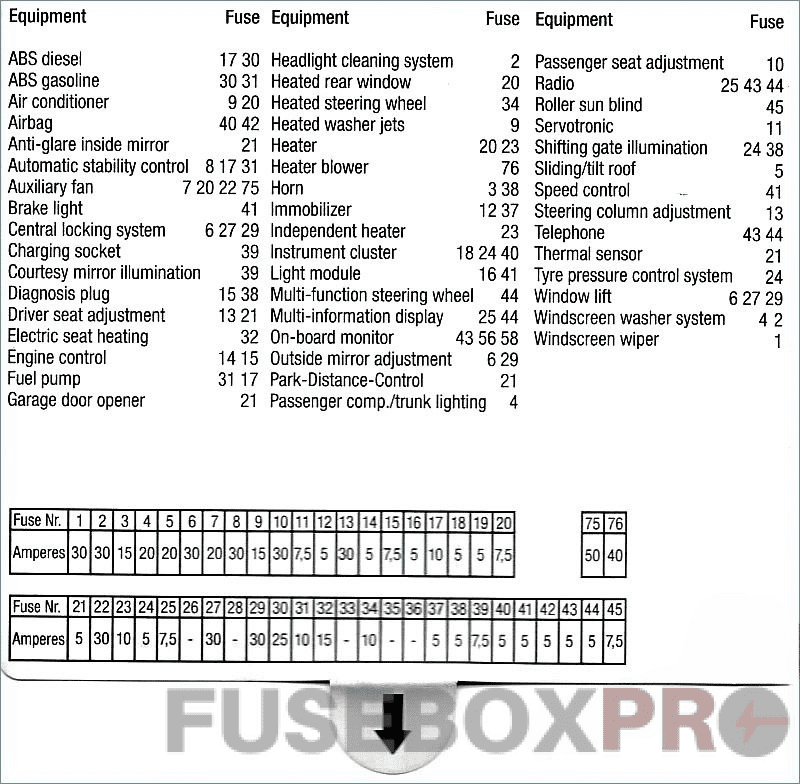

Fuse layout may differ! Your exact fuse allocation scheme is located under this fusebox.
Assignment of the fuses in the glove compartment (until 03.1998)
| № | A | Component |
|---|---|---|
| F1 | 30A | Windscreen wiper motor relay |
| F2 | 30A | Headlamp washers |
| F3 | 15A | Horn |
| F4 | 20A | Multifunction control module |
| F5 | 20A/30A | Sunroof |
| F6 | 30A | Electric door mirror, passenger’s side |
| F7 | 20A/30A | AC condenser blower motor relay 1 |
| F8 | – | – |
| F9 | 15A | AC/ heater control module |
| F10 | 30A | Seat adjustment-passenger’s side |
| F11 | 7,5A | Multifunction control module- variable power steering |
| F12 | 5A | Immobilizer |
| F13 | 30A | Seat adjustment-driver’s side, steering column adjustment |
| F14 | 5A | Engine control module (ECM) |
| F15 | 7,5A | Transmission control module (TCM), engine oil level sensor, alternator, electrics box temperature switch (530d) |
| F16 | 5A | Lamps control module |
| F17 | 10A | Fuel pump relay, ABS control module, multi switch assembly |
| F18 | 5A | Instrument panel |
| F19 | 5A | Overvoltage protection relay 2 |
| F20 | 5A/7.5A | AC/heater control module, heated rear window relay, tyre pressure monitor control module |
| F21 | 5A | Cigarette lighter relay, seat adjustment relay/steering column adjustment relay, garage door opener, parking aid control module, anti-dazzle interior mirror |
| F22 | 30A | AC condenser blower motor relay 2 |
| F23 | 7,5A | Digital multifunction display-rear |
| F24 | 5A | Instrument panel, tyre pressure monitor control module, steering position sensor |
| F25 | 7,5A | Digital multifunction display |
| F26 | – | – |
| F27 | 30A | Multifunction control module |
| F28 | 15A | Automatic transmission (AT) |
| F29 | 30A | Door function control module, driver’s side |
| F30 | 25A | ABS control module |
| F31 | 10A | Fuel pump relay, ABS control module, secondary air injection (AIR) pump relay (petrol) |
| F32 | 25A | Multi switch assembly |
| F33 | – | – |
| F34 | 10A | Multifunction steering wheel/airbag assembly, heated steering wheel |
| F35 | 5A | AC condenser blower motor, rear |
| F36 | – | – |
| F37 | 5A | Immobilizer control module |
| F38 | 5A | Multifunction control module, horn relay, rain sensor, transmission shift hold switch (AT), data link connector (DLC) |
| F39 | 7,5A | Vanity mirror lamps, rechargeable torch |
| F40 | 5A | Instrument panel, seat adjustment control module, airbag crash sensor, seat belt contact switch (drivers side) |
| F41 | 5A | Lamps control module, clutch pedal position (CPP) switch, brake pedal position (BPP)switch |
| F42 | 5A | SRS control module |
| F43 | 5A | Over voltage protection relay 1 |
| F44 | 5A | Multifunction steering wheel/airbag assembly, steering wheel, digital multifunction display-frontfrear |
| F45 | 7,5A | Multi switch assembly |
| № | A | Component |
|---|---|---|
| F1 | 30A | Windscreen wiper motor relay |
| F2 | 30A | Headlamp washers |
| F3 | 15A | Horn |
| F4 | 20A | Multifunction control module |
| F5 | 20A/30A | Sunroof |
| F6 | 30A | Electric door mirror, passenger’s side |
| F7 | 20A/30A | Cigarette lighter-front (09/00) |
| F8 | – | – |
| F9 | 15A | AC/heater control module |
| F10 | 30A | Seat adjustment-passenger’s side |
| F11 | 7,5A | Multifunction control module- variable power steering |
| F12 | 5A | Immobilizer |
| F13 | 30A | Seat adjustment-driver’s side, steering column adjustment |
| F14 | 5A | Engine control module (ECM) |
| F15 | 7,5A | Transmission control module (TCM), engine oil level sensor, alternator, electrics box temperature switch (530d) |
| F16 | 5A | Lamps control module |
| F17 | 10A | Fuel pump relay, ABS control module, multi switch assembly |
| F18 | 5A | Instrument panel |
| F19 | 5A | Overvoltage protection relay 2 |
| F20 | 5A/7.5A | AC/heater control module, heated rear window relay, tyre pressure monitor control module |
| F21 | 5A | Cigarette lighter relay, seat adjustment relay/steering column adjustment relay, garage door opener, parking aid control module, anti-dazzle interior mirror |
| F22 | 25A | Fuel pumprelay-530d/520i(226S1)/525i/530i |
| F23 | 7,5A | Digital multifunction display-rear |
| F24 | 5A | Instrument panel, tyre pressure monitor control module, steering position sensor |
| F25 | 7,5A | Digital multifunction display |
| F26 | – | – |
| F27 | 30A | Multifunction control module |
| F28 | 15A | Automatic transmission (AT) |
| F29 | 30A | Door function control module, driver’s side |
| F30 | 25A | ABS control module |
| F31 | 10A | Fuel pump relay, ABS control module, secondary air injection (AIR) pump relay (petrol) |
| F32 | 25A | Multi switch assembly |
| F33 | – | – |
| F34 | 10A | Multifunction steering wheel/air bag assembly, heated steering wheel |
| F35 | 5A | AC condenser blower motor, rear |
| F36 | – | – |
| F37 | 5A | Immobilizer control module |
| F38 | 5A | Multifunction control module, horn relay, rain sensor, transmission shift hold switch (AT), data link connector (DLC) |
| F39 | 7,5A | Vanity mirror lamps, rechargeable torch |
| F40 | 5A | Instrument panel, seat adjustment control module, airbag crash sensor, seat belt contact switch (driver’s side) |
| F41 | 5A | Lamps control module, clutch pedal position(CPP) switch, brake pedal position (BPP)switch |
| F42 | 5A | SRS control module |
| F43 | 5A | Overvoltage protection relay 1 |
| F44 | 5A | Multifunction steering wheel/air bag assembly, steering wheel, digital multifunction display-front/rear |
| F45 | 7,5A | Multi switch assembly |
Relay block in the glove compartment

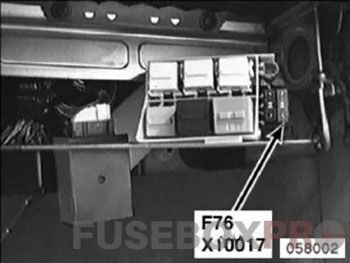

Location
It is located behind the fuse box.

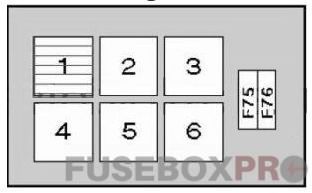

Diagram
Assignment of the relays
| № | component |
|---|---|
| 1 | AC condenser blower motor relay 2(until 03/98) |
| 2 | Headlamp washer pump relay |
| 3 | – |
| 4 | Starter motor relay |
| 5 | Seat adjustment relay/steering column adjustment relay |
| 6 | Heater blower relay |
| F75 | (50A) AC condenser blower motor/engine coolant blower motor |
| F76 | (40A) AC/heater blower control module |

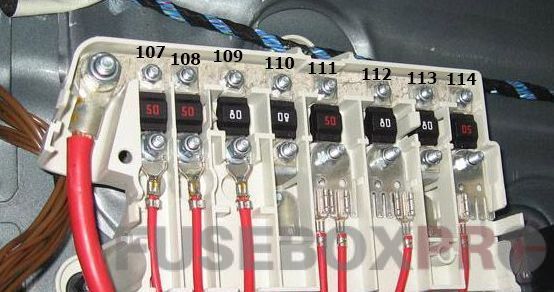

Block in the footwell
It is located on the floor under the lining, on the right side of the car.
Assignment of the fuses (footwell)
| № | A | Component |
|---|---|---|
| F107 | 50A | Secondary air injection (AIR) pump relay |
| F108 | 50A | ABS control module |
| F109 | 80A | Engine control (EC) relay, fuse box-engine bay (F4&F5) |
| F110 | 80A | Fuse box-fascia 1 (F1-F12&F22-F25) |
| F111 | 50A | Ignition switch |
| F112 | 80A | Lamps control module |
| F113 | 80A | Seat adjustment relay/steering column adjustment relay, fuse box-fascia 1 (F27-F30), fuse box-fascia 2 (F76), lamps control module, fuse box-fascia 1 (F13)-with lumbar support |
| F114 | 50A | Ignition switch, data link connector (DLC) |
Fuse boxes in the luggage compartment

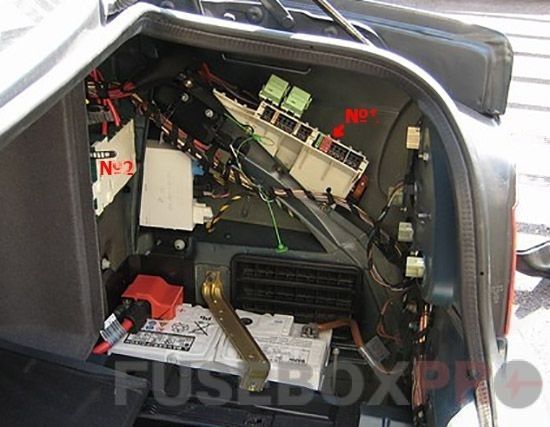

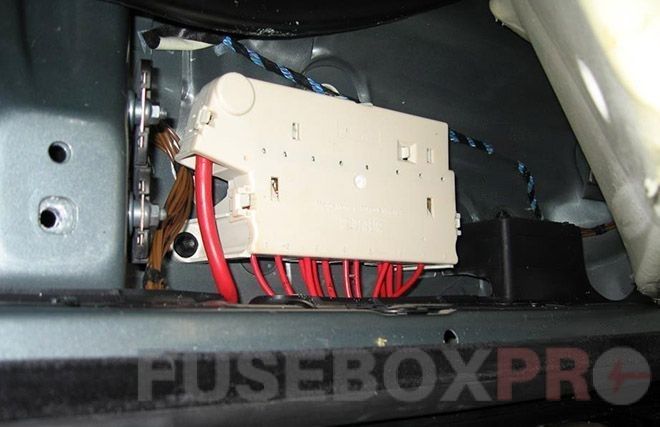

Fuse Box Location
They are located on the right side, behind the cover.

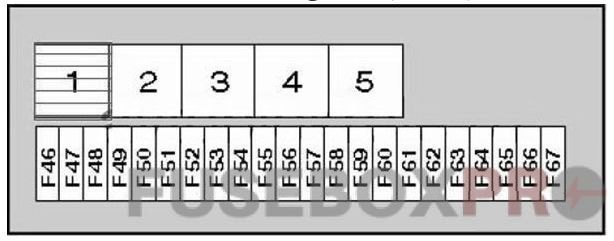

Box 1

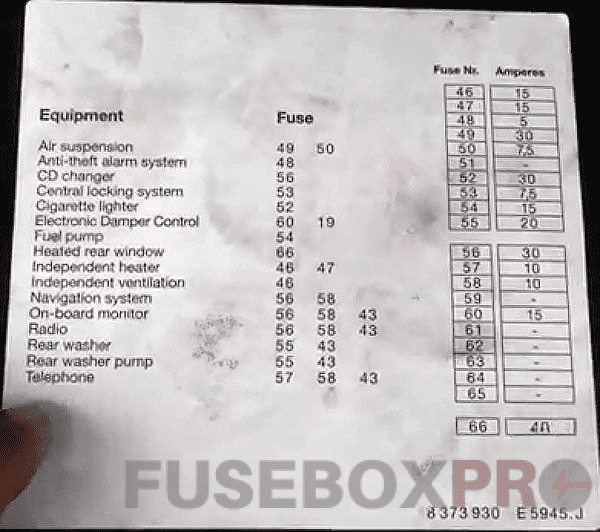

Fuse layout may differ! Your exact fuse allocation scheme is located on the cover.
Assignment of the fuses and relay (box 1, type 1)
| № | A | Component |
|---|---|---|
| 1 | Overvoltage protection relay 1 | |
| 2 | Fuel pump relay | |
| 3 | Heated rear window relay | |
| 4 | Overvoltage protection relay 2 | |
| 5 | Fuel filler flap relay | |
| F46 | – | – |
| F47 | 15A/20A | Auxiliary heater |
| F48 | 5A | Anti-dazzle interior mirror, alarm system in car movement control module, alarm system gradient sensor, alarm system horn |
| F49 | 30A | Suspension compressor relay |
| F50 | 7,5A | Suspension control module (with air suspension) |
| F51 | 30A | Cigarette lighter- rear |
| F52 | 30A | Cigarette lighter relay, cigarette lighter-front |
| F53 | 5A | Aerial signal amplifier, boot lid/tail gate lockstitch |
| F54 | 15A | Fuel pump relay |
| F55 | 20A | Rear screen wash/wipe relay |
| F56 | 30A | Audio unit, navigation system control module, audio unit output amplifier, audio unit CD changer, in-car monitor |
| F57 | 10A | Telephone |
| F58 | 10A | Overvoltage protection relay 1 |
| F59 | 20A | Trailer socket |
| F60 | 15A | Suspension control module, multi switch assembly |
| F61 | 25A | Rear seat heater switch, left, rear seat heater switch, right |
| F62 | – | – |
| F63 | – | – |
| F64 | – | – |
| F65 | – | – |
| F66 | 40A | Heated rear window relay |
| F67 | – | – |
| № | A | Component |
|---|---|---|
| 1 | Ignition main circuits relay | |
| 2 | Fuel pump relay | |
| 3 | Heated rear window relay | |
| 4 | Ignition auxiliary circuits relay | |
| 5 | Independent heater relay | |
| F46 | 15A | independent heater/ventilation |
| F47 | 15A | independent heater |
| F48 | 5A | Alarm system |
| F49 | 30A | Air suspension system |
| F50 | 7,5A | Air suspension system |
| F51 | – | – |
| F52 | 30A | Cigarette lighter |
| F53 | 7,5A | Central locking system |
| F54 | 15A | Fuel pump |
| F55 | – | – |
| F56 | 30A | Audio system, navigation system, on-board monitor |
| F57 | 10A | Cellular phone |
| F58 | 10A | Audio unit, on-board monitor, navigation system, telephone |
| F59 | – | – |
| F60 | 15A | Suspension adjustment control |
| F61 | – | – |
| F62 | – | – |
| F63 | – | – |
| F64 | – | – |
| F65 | – | – |
| F66 | 40A | Heated rear window |
| F67 | – | – |
| F6S | – | – |
| F69 | – | – |
| F70 | – | – |
| F71 | – | – |
| F72 | – | – |
| F73 | – | – |
| F74 | – | – |

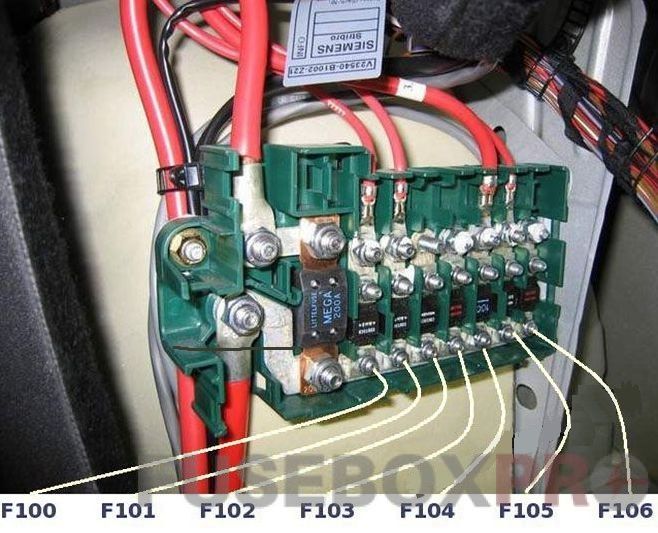

Box 2
Assignment of the fuses and relay (box 2)
| № | A | Component |
|---|---|---|
| F100 | 200A | Fuse box-footwall (F107-F114) |
| F101 | 80A | Fuse box – load area 1 (F46-F50, F66) |
| F102 | 80A | Fuse box-load area 1 (F51-F55) |
| F103 | 50A | Trailer control module |
| F104 | 50A | Overvoltage protection relay 2 |
| F105 | 100A | Fuse box-fascia 2 (F75), auxiliary heater |
| F106 | 80A | Fuse box-load area 1 (F56-F59) |
