The Audi A6 (C7) is a mid-size luxury car produced by Audi AG from 2010 to 2016. It is the fourth generation of the Audi A6 and is introduced as a successor to the Audi A6 (C6). The Audi A6 (C7) is available in sedan and wagon (Avant) body styles and is renowned for its elegant styling, exceptional build quality, and cutting-edge technology. One of the most important aspects of any modern vehicle is its electrical system, which includes the fuse box and relay diagrams. In this article, we will explore the various electrical components of the Audi A6 (C7) and how they relate to the fuse box and relay diagrams.
Audi A6 (C7) Fuse Box and Relay Diagrams
The fuse box and relay diagrams are an essential part of the electrical system of the Audi A6 (C7). They help to control the electrical components of the car, such as the lights, radio, and power windows. The fuse box is located in the dashboard on the driver’s side, and there is also a fuse box located in the engine compartment. The relay panel is located in the dashboard on the passenger’s side.
Fuse Box Diagram
The fuse box diagram for the Audi A6 (C7) is divided into two main sections. The first section contains fuses that are located in the engine compartment, and the second section contains fuses that are located in the dashboard. Each fuse is identified by a unique number, and the diagram provides information about the function of each fuse. Some of the fuses that are commonly found in the Audi A6 (C7) include the starter motor, horn, power windows, and air conditioning.
Relay Diagram
The relay diagram for the Audi A6 (C7) is located in the dashboard on the passenger’s side. It contains information about the function of each relay and its location. The relay panel contains a total of 34 relays, and each one is identified by a unique number. Some of the relays that are commonly found in the Audi A6 (C7) include the power windows, headlight washer system, and the rear window defogger.
(2010-2016) Audi A6 (C7) fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.

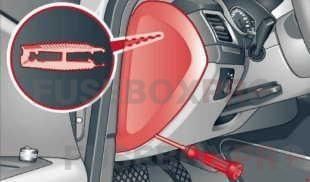

Audi A6 (C7) 2010-2016 Fuse Location, Instrument Panel left
The fuses are located on the front left and right of the cockpit and behind the trim on the right side of the luggage compartment.
â–º Switch the ignition and all electrical equipment off.
â–º Check the following table to see which fuse belongs to the equipment.
â–º Remove the appropriate cover.
â–º Remove the fuse using the clamp.
â–º Replace the blown fuse only with an identical new one.
â–º Install the cover.
– The following table does not list fuse locations that are not used.
– Some of the equipment listed in the following tables applies only to certain model versions or certain optional equipment.

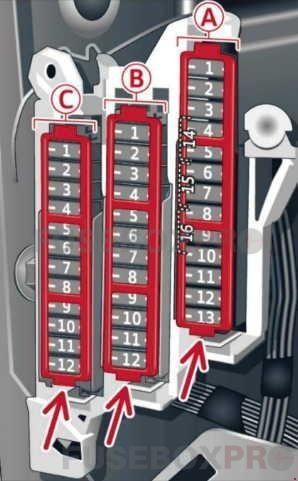

Driver side cockpit fuse Assignment/Designation
| Fuse panel A (black) | |
| â„– | Equipment |
| 1 | Electromechanical power steering, trailer hitch, ionizer, switch strip, seat heating (rear), electromechanical parking brake |
| 2 | Horn, climate control system, Gateway, automatic dimming interior rearview mirror |
| 3 | |
| 4 | Parking aid, headlight range adjustment |
| 5 | Dynamic steering, Electronic Stabilization Control (ESC) |
| 6 | Headlights |
| 7 | Adaptive cruise control |
| 8 | Front passenger’s seat sensors, airbag |
| 9 | Gateway |
| 10 | Engine sound, night vision assist, garage door opener (HomeLink), parking aid |
| 11 | Video camera image processing |
| 12 | Headlights |
| 13 | Steering column switch module |
| 14 | Terminal 15 (luggage compartment) |
| 15 | Terminal 15 (engine compartment) |
| 16 | Starter |
| Fuse panel B (brown) | |
| 1 | Infotainment |
| 2 | Infotainment |
| 3 | Front passenger’s seat |
| 4 | |
| 5 | Airbag, Electronic Stabilization Control (ESC) |
| 6 | Anti-theft alarm system |
| 7 | Electromechanical parking brake |
| 8 | Interior lights |
| 9 | Windshield video camera heating, light/rain sensor |
| 10 | Lumbar support (driver’s seat) |
| 11 | Driver’s seat |
| 12 | Electronic stabilization control |
| 13 | Horn |
| 14 | Headlights |
| 15 | Front seat heating |
| 16 | Dynamic steering |
| Fuse panel C (red) | |
| 1 | Clutch pedal |
| 2 | Fuel pump |
| 3 | Brake light sensor |
| 4 | AdBlue (diesel engine)/engine acoustics |
| 5 | Rear door |
| 6 | Front door |
| 7 | Electronic stabilization control |
| 8 | Windshield wiper motor |
| 9 | Headlight washer system |
| 10 | Interior lighting, climate control system |
| 11 | Headlights |
| 12 | Sunroof |

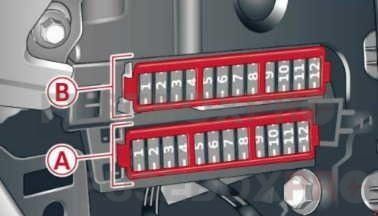

Front passenger side cockpit fuse Assignment/Designation
| Fuse panel A (black) | |
| â„– | Equipment |
| 1 | Infotainment, CD changer |
| 2 | Infotainment (display) |
| Fuse panel B (brown) | |
| 1 | Climate control system |
| 2 | Climate control system (blower) |
| 3 | Diagnostic interface |
| 4 | Electrical ignition lock |
| 5 | Electronic steering column lock |
| 6 | Steering column switch module |
| 7 | Power steering column adjustment |
| 8 | Light switch |
| 9 | Head-up display |
| 10 | Instrument cluster |
| 11 | Infotainment, DVD changer |

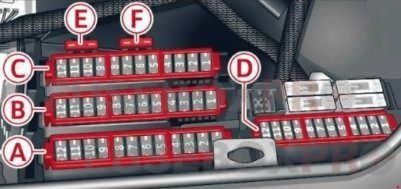

Luggage compartment fuse Assignment/Designation
| Fuse panel A (black) | |
| â„– | Equipment |
| 1 | Trailer hitch/220 volt socket |
| 2 | Trailer hitch/climatized cup holder |
| 3 | Trailer hitch/adjusting front passenger’s seat from the rear |
| 4 | Electromechanical parking brake |
| 5 | Electromechanical parking brake |
| 6 | Front door (front passenger’s side) |
| 7 | Rear exterior lighting |
| 8 | Central locking, closing aid |
| 9 | Seat heating (front) |
| 10 | |
| 11 | Seat heating (rear), climate control system |
| 12 | Trailer hitch |
| Fuse panel B (red) | |
| 1 | Left safety belt tensioner |
| 2 | Right safety belt tensioner |
| 3 | AdBlue tank (diesel engine)/fuel pump |
| 4 | AdBlue tank (diesel engine)/engine mount (gasoline engine) |
| 5 | Sensor-controlled luggage compartment lid |
| 6 | Air suspension, adaptive dampers |
| 7 | Rear door (front passenger’s side) |
| 8 | Tail lights |
| 9 | Luggage compartment lid |
| 10 | Rear seat entertainment |
| 11 | |
| 12 | Rear spoiler (Sportback), tilt/open sunroof, Panorama glass roof |
| Fuse panel C (brown) | |
| 1 | Infotainment |
| 2 | Infotainment |
| 3 | Infotainment, automatic dimming interior rearview mirror |
| 4 | |
| 5 | TV tuner |
| 6 | Tank leak detection system |
| 7 | Sockets |
| 8 | Parking heater |
| 9 | |
| 10 | Lumbar support (front passenger’s seat) |
| 11 | |
| 12 | Infotainment |
| Fuse panel D (black) | |
| 1 | Air suspension, adaptive dampers, sport differential, electromechanical parking brake |
| 2 | Clutch pedal position sensor/automatic transmission |
| 3 | Seats |
| 4 | Rear wiper(Avant) |
| 5 | Side assist |
| 6 | Engine sound |
| 7 | Infotainment/sound amplifier |
| 8 | Gateway |
| 9 | Sport differential |
| 10 | Climate control system |
| 11 | Tire pressure monitoring system/parking heater |
| 12 | Start-Stop-System |
| Fuse panel E (black) | |
| 1 | Special purpose vehicles/rear seats |
| Fuse panel F (black) | |
| 1 | Rear window defogger |
In conclusion, the electrical system of the Audi A6 (C7) is a critical component of the car. Understanding the location and function of the fuse box and relay diagrams is essential for maintaining and repairing the electrical system of the Audi A6 (C7). The Audi A6 (C7) is a well-engineered vehicle that offers a high level of comfort and luxury, and the fuse box and relay diagrams are just one example of the attention to detail that Audi has put into this exceptional car.
