The Audi A5 is a luxury car that is introduced in 2007 as a coupe version of the Audi A4. The second generation of the A5 is released in 2013 and is produced until 2016. The A5 is known for its sleek design and high-quality interior, making it a popular choice for those seeking a combination of style and luxury. In this article, we will explore the various electrical components of the Audi A5 2013-2016, including its fuse box and relay diagrams with locations.
The Fuse Box of the Audi A5 2013-2016
The fuse box in the Audi A5 2013-2016 is located underneath the dashboard on the driver’s side of the vehicle. To access the fuse box, simply open the driver’s side door and remove the panel on the side of the dashboard. Inside the panel, you will find a diagram of the fuses and their corresponding functions.
The fuse box contains fuses that control various electrical components of the car, such as the air conditioning, radio, and power windows. It is important to regularly check the fuses in the Audi A5 to ensure that they are in good condition and functioning properly. If a fuse blows, it can cause the corresponding electrical component to malfunction or stop working altogether. To replace a blown fuse, simply remove the old fuse and replace it with a new one of the same amperage rating.
The Relay of the Audi A5 2013-2016
The relay in the Audi A5 2013-2016 is located in the engine compartment near the battery. The relay is responsible for controlling various electrical components of the car, such as the headlights, fuel pump, and cooling fan. It is important to regularly check the relay in the Audi A5 to ensure that it is functioning properly. If the relay fails, it can cause the corresponding electrical component to malfunction or stop working altogether.
To check the relay, simply remove it from its socket and inspect it for any signs of damage or wear. If the relay is damaged, it should be replaced with a new one of the same part number. It is important to note that some relays in the Audi A5 are not user-serviceable and may require professional repair or replacement. Always consult the owner’s manual or a certified mechanic for assistance with electrical component repairs.
(2013-2016) Audi A5 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
Audi A5 2013-2016 fuse assignment

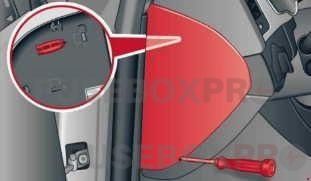

The fuses are located at the front left and right of the cockpit and behind the trim on the right side of the luggage compartment.

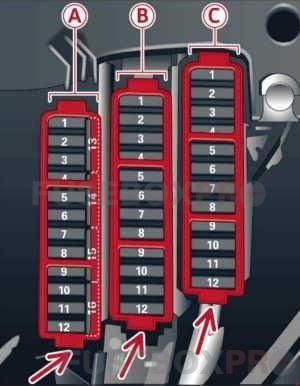

Left cockpit fuse assignment
| Fuse panel A (black) | |
| â„– | Assignment/Designation |
| 1 | Dynamic steering |
| 2 | Electronic Stabilization Control (module) |
| 3 | A/С system pressure sensor, electromechanical parking brake, HomeLink, automatic dimming interior rearview mirror, air quality/outside air sensor, Electronic Stabilization Control (button) |
| 4 | – |
| 5 | Sound actuator |
| 6 | Headlight range control/headlight (cornering light) |
| 7 | Headlight (cornering light) |
| 8 | Control modules (electromechanical parking brake, shock absorber, quattro sport), DCDC converter |
| 9 | Adaptive cruise control |
| 10 | Shift gate/clutch sensor |
| 11 | Side assist |
| 12 | Headlight range control, parking system |
| 13 | Airbag |
| 14 | Rear wiper (allroad) |
| 15 | Auxiliary fuse (instrument panel) |
| 16 | Auxiliary fuse terminal 15 (engine area) |
| Fuse panel B (brown) | |
| 1 | – |
| 2 | Brake light sensor |
| 3 | Fuel pump |
| 4 | Clutch sensor |
| 5 | Left seat heating with/without seat ventilation |
| 6 | Electronic Stabilization Control (electric) |
| 7 | Horn |
| 8 | Front left door (window regulator, central locking, mirror, switch, lighting) |
| 9 | Windshield wiper motor |
| 10 | Electronic Stabilization Control (valves) |
| 11 | Two-door models: rear left window regulator; Four-door models: rear left door (window regulator, central locking, switch, lighting) |
| 12 | Rain and light sensor |
| Fuse panel C (red) | |
| 1 | – |
| 2 | – |
| 3 | Lumbar support |
| 4 | Dynamic steering |
| 5 | Interior lighting (Cabriolet) |
| 6 | Windshield washer system, headlight washer system |
| 7 | Vehicle electrical system control module 1 |
| 8 | Vehicle electrical system control module 1 |
| 9 | Left rear window regulator motor (Cabrio-let)/sunroof |
| 10 | Vehicle electrical system control module 1 |
| 11 | Right rear window regulator (Cabriolet)/ sun shade motor |
| 12 | Anti-theft alarm warning system |

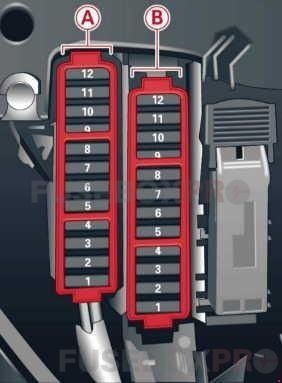

Right cockpit fuse assignment
| Fuse panel A (black) | |
| â„– | Assignment/Designation |
| 1 | – |
| 2 | – |
| 3 | – |
| 4 | – |
| 5 | Steering column switch module |
| 6 | – |
| 7 | Terminal 15 diagnostic connector |
| 8 | Gateway (Databus diagnostic interface) |
| 9 | Supplementary heater |
| 10 | – |
| 11 | – |
| 12 | – |
| Fuse panel B (brown) | |
| 1 | CD/DVD player |
| 2 | Wi-Fi |
| 3 | MMI/Radio |
| 4 | Instrument cluster |
| 5 | Gateway (instrument cluster control module) |
| 6 | Ignition lock |
| 7 | Light switch |
| 8 | Climate control system blower |
| 9 | Steering column lock |
| 10 | Climate control system |
| 11 | Terminal 30 diagnostic connector |
| 12 | Steering column switch module |

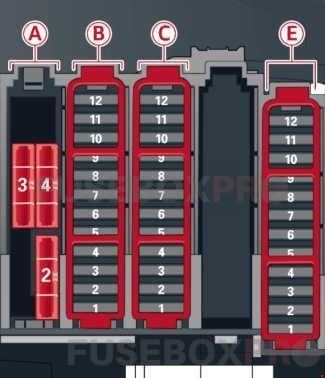

Right luggage compartment fuse assignment
| Fuse panel A (black) | |
| â„– | Assignment/Designation |
| 1 | – |
| 2 | Rear window heater (Cabriolet) |
| 3 | Power top latch (Cabriolet) |
| 4 | Power top hydraulics (Cabriolet) |
| Fuse panel B (black) | |
| 1 | Luggage compartment lid control module (allroad)/Power top control module (Cabriolet) |
| 2 | Retractable rear spoiler (RS 5 Coupe) |
| 3 | – |
| 4 | – |
| 5 | Electromechanical parking brake |
| 6 | Electronic damping control |
| 7 | Electromechanical parking brake |
| 8 | Rear exterior lighting |
| 9 | Quattro sport |
| 10 | Rear exterior lighting |
| 11 | Central locking |
| 12 | Terminal 30 |
| Fuse panel C (brown) | |
| 1 | Luggage compartment lid control module (allroad) |
| 2 | 12-volt socket, cigarette lighter |
| 3 | DCDC converter path 1 |
| 4 | DCDC converter path 2, sound amplifier, radio |
| 5 | – |
| 6 | Right upper cabin heating (Cabriolet) |
| 7 | Electromechanical parking brake |
| 8 | – |
| 9 | Right front door (window regulator, central locking, mirror, switch, lighting) |
| 10 | Left upper cabin heating (Cabriolet) |
| 11 | Two-door models: rear right window regulator; Four-door models: rear right door (window regulator, central locking, switch, lighting) |
| 12 | Cell phone prep |
| Fuse panel E (black) | |
| 1 | Right front seat heating |
| 2 | – |
| 3 | – |
| 4 | MMI |
| 5 | Radio |
| 6 | Rear view camera |
| 7 | Rear window heater (allroad) |
| 8 | Rear Seat Entertainment |
| 9 | – |
| 10 | – |
| 11 | – |
| 12 | – |
In conclusion, the Audi A5 2013-2016 is a luxury car that is known for its sleek design and high-quality interior. Regular maintenance of the electrical components of the car, such as the fuse box and relay, is essential for ensuring that the car is functioning properly. By regularly checking and replacing the fuses and relays as needed, owners of the Audi A5 can help to prevent electrical malfunctions and keep their car in top condition.
