The Ford Escape Hybrid (2005-2007) is a groundbreaking compact SUV, blending a traditional gas engine with an electric motor for enhanced fuel efficiency and reduced emissions. It features a five-door body style with a spacious cabin that seats up to five passengers, making it ideal for eco-conscious families and commuters. Retaining the rugged yet practical design of the standard Escape, the Hybrid model also offers front-wheel drive and all-wheel drive configurations to cater to urban and off-road needs. Its innovative hybrid system sets it apart in terms of performance and efficiency.
The electrical system of the Escape Hybrid is managed by a reliable fuse box and relay system, which ensures seamless functionality for both standard and hybrid-specific components. The primary fuse box is located under the hood near the battery, protecting critical systems such as the hybrid control unit, cooling fans, and ignition. An interior fuse panel, located beneath the dashboard on the driver’s side, handles accessories like power windows, cabin lighting, and the audio system. Relays positioned near the fuse boxes manage high-power components, including the air conditioning and hybrid power systems. Regular maintenance of these components ensures optimal performance.
MUST READ: DYI – How to Check Car Fuses?
(2005-2007) Ford Escape Hybrid fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford Escape Hybrid 2005-2007 fuse assignment
Ford Escape Hybrid Year of production: 2005, 2006, 2007
Passenger Compartment Fuse Panel:

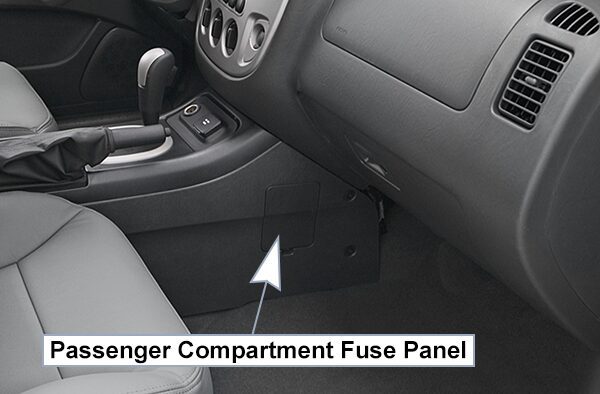

The fuse panel is located on the right-hand side of the center console, by the instrument panel. Remove the panel cover to access the fuses.
Power Distribution Box:

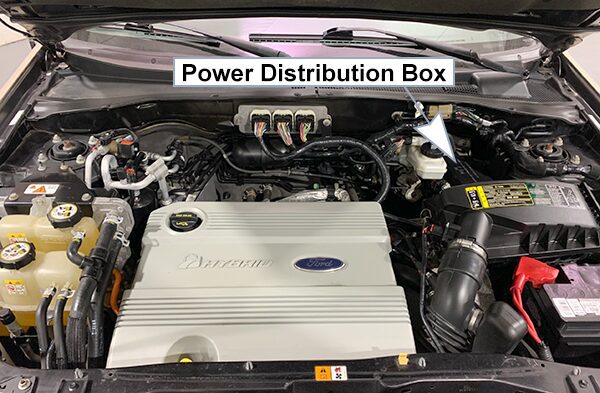

The power distribution box is located in the engine compartment. The power distribution box contains high-current fuses that protect your vehicle’s main electrical systems from overloads.
Auxiliary Relay Box:
The relay box is located on the radiator support (left of the hood latch).
Fuse Box Diagrams
2005

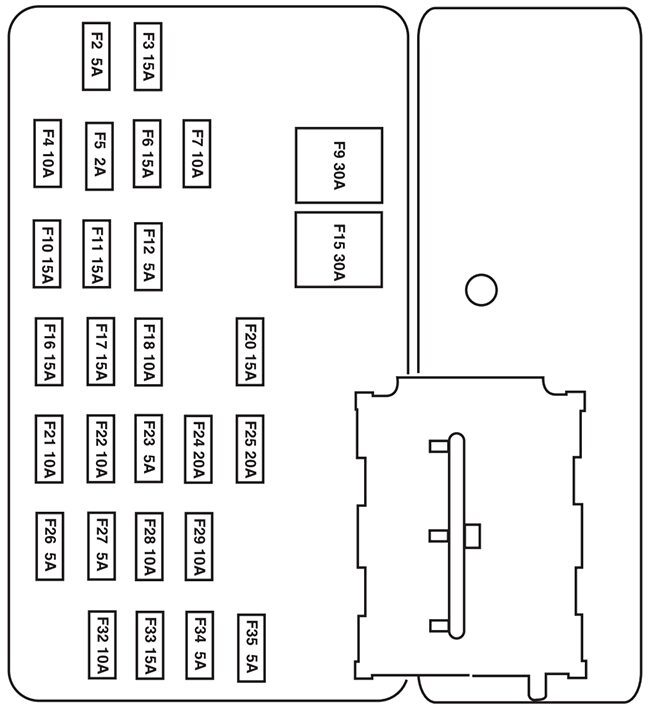

Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2005)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | 5A* | Spare |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay) |
| 6 | 15A* | Stop lamps |
| 7 | 10A* | Instrument cluster, Power mirror switch, Radio |
| 8 | – | Not used |
| 9 | 30A** | Power door locks |
| 10 | 15A* | Rear defroster switch indicator |
| 11 | 15A* | Spare |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4×4 |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | 5A* | Spare |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Traction (high voltage) Battery Control Module (TBCM), Injectors |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Back-up lamps |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | 10A* | Spare |
| 33 | 15A* | Air bag module |
| 34 | 5A* | Brake System Control Module (BSCM), Power Steering Control Module (PSCM) |
| 35 | 5A* | 4×4, Power point (110V AC) |
| * Mini fuse ** Cartridge fuse | ||

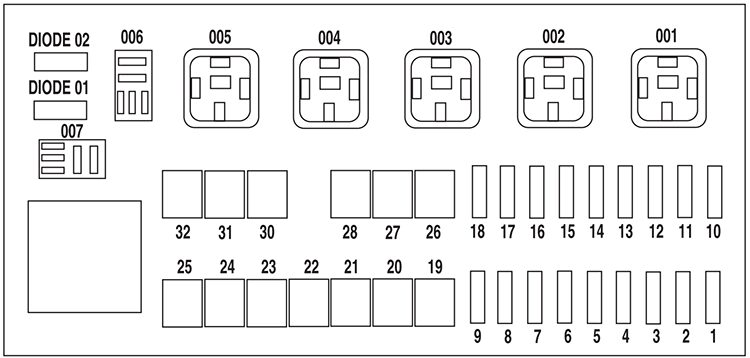

Power Distribution Box
List of fuses in the power distribution box (2005)
| № | A | Description |
|---|---|---|
| 1 | 5A* | Brake module |
| 2 | 10A* | Climate control |
| 3 | 5A* | Transaxle Control Module (TCM) |
| 4 | 7.5A* | Traction (High voltage) Battery Control Module (TBCM), Powertrain Control Module (PCM) |
| 5 | 5A* | Interlock |
| 6 | 15 A* | PCM power |
| 7 | 15 A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 8 | 10A* | TCM VPWR |
| 9 | 20A* | Fuel pump |
| 10 | 30A* | Bussed power feed to PDB fuses 1, 2, 3, 4 |
| 11 | 20A* | Fog lamps |
| 12 | 25A* | Exterior lighting |
| 13 | 25A* | B+ lighting |
| 14 | 30A* | Power point (110V AC) |
| 15 | 20A* | Ignition main |
| 16 | 15 A* | A/C clutch |
| 17 | 20A* | Power point |
| 18 | 30A* | Injectors, COP (Coil-on-plug) |
| 19 | 40A** | Climate control blower |
| 20 | 40A** | Cooling fan #1 |
| 21 | 40A** | PCM power |
| 22 | 40A** | SJB power (Passenger compartment fuse box) power #1 |
| 23 | 40A** | SJB (Passenger compartment fuse box) power #2 |
| 24 | 50A** | BSCM #1 |
| 25 | 50A** | Power Steering Control Module (PSCM) #1 |
| 26 | 50A** | TBCM (High voltage battery) cooling fans and jump start |
| 27 | 40A** | Cooling fan #2 |
| 28 | 30A** | Rear defroster |
| 29 | – | Not used |
| 30 | 40A** | SJB (Passenger compartment fuse box) power #3 |
| 31 | 50A** | BSCM #2 |
| 32 | 50A** | PSCM #2 |
| 001 | Relay | Power sustain for PCM, TBCM and Transaxle Control Module (TCM) |
| 002 | Relay | PCM power |
| 003 | Relay | Injector |
| 004 | Relay | Auxiliary coolant pump |
| 005 | Relay | Motor/Electronic coolant pump |
| 006 | Relay | Fog lamps |
| 007 | Relay | A/C clutch |
| Diode 01 | – | A/C clutch |
| Diode 02 | – | Not used |
| * Mini fuse **Cartridge fuse | ||

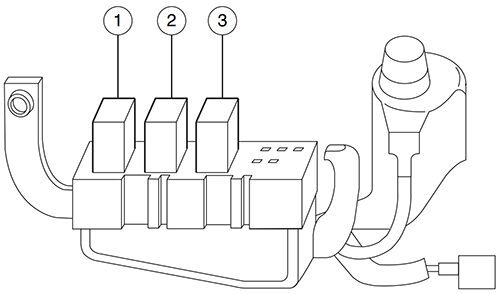

Auxiliary Relay Box
List of fuses in the auxiliary relay box (2005)
| № | Description |
|---|---|
| Relay 1 | Driver side cooling fan |
| Relay 2 | Passenger side cooling fan (low-speed) |
| Relay 3 | Passenger side cooling fan (high-speed) |
2006
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2006)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), PATS module |
| 6 | 15A* | Stop lamps |
| 7 | 10A* | Instrument cluster, Power mirror switch, Radio |
| 8 | – | Not used |
| 9 | 30A** | Power door locks |
| 10 | 15A* | Heated mirrors, Rear defroster switch indicator |
| 11 | 15A* | Moon roof |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4×4 |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | – | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Traction (high voltage) Battery Control Module (TBCM), Injectors |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Back-up lamps, Reverse park aid |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | 10A* | Spare |
| 33 | 15A* | Air bag module |
| 34 | 5A* | Brake System Control Module (BSCM), Power Steering Control Module (PSCM) |
| 35 | 5A* | 4×4, Power point (110V AC), Heated seats |
| * Mini fuse ** Cartridge fuse | ||
Power Distribution Box
List of fuses in the power distribution box (2006)
| № | A | Description |
|---|---|---|
| 1 | 5A* | Brake module |
| 2 | 10A* | Climate control |
| 3 | 5A* | Transaxle Control Module (TCM) |
| 4 | 7.5A* | Traction (high voltage) Battery Control Module (TBCM), Powertrain Control Module (PCM) |
| 5 | 5A* | Interlock |
| 6 | 15A* | PCM power |
| 7 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 8 | 10A* | TCM VPWR |
| 9 | 20A* | Fuel pump |
| 10 | 30A* | Bussed power feed to PDB fuses 1, 2, 3, 4 |
| 11 | 20A* | Foglamps |
| 12 | 25A* | Exterior lighting |
| 13 | 25A* | B+ lighting |
| 14 | 30A* | Power point (110V AC) |
| 15 | 20A* | Ignition main |
| 16 | 15A* | A/C clutch |
| 17 | 20A* | Power point |
| 18 | 30A* | Injectors, COP (Coil-on-plug) |
| 19 | 40A** | Climate control blower |
| 20 | 40A** | Cooling fan #1 |
| 21 | 40A** | PCM power |
| 22 | 40A** | SJB power (Passenger compartment fuse box) power #1 |
| 23 | 40A** | SJB (Passenger compartment fuse box) power #2 |
| 24 | 50A** | BSCM #1 |
| 25 | 50A** | Power Steering Control Module (PSCM) #1 |
| 26 | 50A** | TBCM (high voltage battery) cooling fans and jump start |
| 27 | 40A** | Cooling fan #2 |
| 28 | 40A** | Rear defroster, Heated mirrors |
| 29 | 20A** | Heated seats |
| 30 | 40A** | SJB (Passenger compartment fuse box) power #3 |
| 31 | 50A** | BSCM #2 |
| 32 | 50A** | PSCM #2 |
| 001 | Relay | Power sustain for PCM, TBCM and Transaxle Control Module (TCM) |
| 002 | Relay | PCM power |
| 003 | Relay | Injector |
| 004 | Relay | Auxiliary coolant pump |
| 005 | Relay | Motor/Electronic coolant pump |
| 006 | Relay | Foglamps |
| 007 | Relay | A/C clutch |
| Diode 01 | – | A/C clutch |
| Diode 02 | – | Not used |
| * Mini fuse **Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2006)
| № | Description |
|---|---|
| Relay 1 | Driver side cooling fan |
| Relay 2 | Passenger side cooling fan (low-speed) |
| Relay 3 | Passenger side cooling fan (high-speed) |
2007
Passenger Compartment Fuse Panel
List of fuses in the passenger compartment fuse panel (2007)
| № | A | Description |
|---|---|---|
| 1 | – | Not used |
| 2 | – | Not used |
| 3 | 15A* | Front and rear park lamps |
| 4 | 10A* | Ignition switch |
| 5 | 2A* | Powertrain Control Module (PCM relay), PATS module |
| 6 | 15A* | Stop lamps |
| 7 | 10A* | Instrument cluster, Power mirror switch, Radio |
| 8 | – | Not used |
| 9 | 30A** | Power door locks |
| 10 | 15A* | Heated mirrors, Rear defroster switch indicator |
| 11 | 15A* | Moon roof |
| 12 | 5A* | Radio |
| 13 | – | Not used |
| 14 | – | Not used |
| 15 | 30A** | Power Windows |
| 16 | 15A* | Subwoofer |
| 17 | 15A* | Low beams |
| 18 | 10A* | 4×4 |
| 19 | – | Not used |
| 20 | 15A* | Horn |
| 21 | 10A* | Rear wiper motor, Rear wiper washer |
| 22 | 10A* | Instrument cluster |
| 23 | – | Not used |
| 24 | 20A* | Cigar lighter |
| 25 | 20A* | Front wiper motor, Front wiper washer |
| 26 | 5A* | Climate control system mode switch |
| 27 | 5A* | Traction (high voltage) Battery Control Module (TBCM), Injectors |
| 28 | 10A* | Instrument cluster |
| 29 | 10A* | Back-up lamps, Reverse park aid |
| 30 | – | Not used |
| 31 | – | Not used |
| 32 | – | Not used |
| 33 | 15A* | Air bag module |
| 34 | 5A* | Brake System Control Module (BSCM), Power Steering Control Module (PSCM) |
| 35 | 5A* | 4×4, Power point (110V AC), Heated seats |
| * Mini fuse ** Cartridge fuse | ||
Power Distribution Box
List of fuses in the power distribution box (2007)
| № | A | Description |
|---|---|---|
| 1 | 5A* | Brake module |
| 2 | 10A* | Climate control |
| 3 | 5A* | Transaxle Control Module (TCM) |
| 4 | 7.5A* | Traction (high voltage) Battery Control Module (TBCM), Powertrain Control Module (PCM) |
| 5 | 5A* | Interlock |
| 6 | 15A* | PCM power |
| 7 | 15A* | Heated Exhaust Gas Oxygen (HEGO) sensors |
| 8 | 10A* | TCM VPWR |
| 9 | 20A* | Fuel pump |
| 10 | 30A* | Bussed power feed to PDB fuses 1, 2, 3, 4 |
| 11 | 20A* | Foglamps |
| 12 | 25A* | Exterior lighting |
| 13 | 25A* | B+ lighting |
| 14 | 30A* | Power point (110V AC) |
| 15 | 20A* | Ignition main |
| 16 | 15A* | A/C clutch |
| 17 | 20A* | Power point |
| 18 | 30A* | Injectors, COP (Coil-on-plug) |
| 19 | 40A** | Climate control blower |
| 20 | 40A** | Cooling fan #1 |
| 21 | 40A** | PCM power |
| 22 | 40A** | SJB power (Passenger compartment fuse box) power #1 |
| 23 | 40A** | SJB (Passenger compartment fuse box) power #2 |
| 24 | 50A** | BSCM #1 |
| 25 | 50A** | Power Steering Control Module (PSCM) #1 |
| 26 | 50A** | TBCM (high voltage battery) cooling fans and jump start |
| 27 | 40A** | Cooling fan #2 |
| 28 | 40A** | Rear defroster, Heated mirrors |
| 29 | 20A** | Heated seats |
| 30 | 40A** | SJB (Passenger compartment fuse box) power #3 |
| 31 | 50A** | BSCM #2 |
| 32 | 50A** | PSCM #2 |
| 001 | Relay | Power sustain for PCM, TBCM and Transaxle Control Module (TCM) |
| 002 | Relay | PCM power |
| 003 | Relay | Injector |
| 004 | Relay | Auxiliary coolant pump |
| 005 | Relay | Motor/Electronic coolant pump |
| 006 | Relay | Foglamps |
| 007 | Relay | A/C clutch |
| Diode 01 | – | A/C clutch |
| Diode 02 | – | Not used |
| * Mini fuse **Cartridge fuse | ||
Auxiliary Relay Box
List of fuses in the auxiliary relay box (2007)
| № | Description |
|---|---|
| Relay 1 | Driver side cooling fan |
| Relay 2 | Passenger side cooling fan (low-speed) |
| Relay 3 | Passenger side cooling fan (high-speed) |
Conclusion
The 2005-2007 Ford Escape Hybrid combines eco-friendly technology with practicality. Proper care of its fuse box and relays is crucial for reliable operation.
