The 1996 Ford E-Series, including the E-150, E-250, E-350, and E-450, is a versatile lineup of full-size vans designed for cargo, passenger transport, and commercial use. Available in cargo and passenger body styles, these vans offer robust performance and customizable configurations, making them suitable for a range of applications. With ample interior space and durable construction, the E-Series models remain a popular choice for both work and leisure purposes.
The electrical systems of these vans are supported by a strategically designed fuse box and relay setup. The primary fuse box is located under the dashboard on the driver’s side, while an additional power distribution box, housing key relays, is situated in the engine compartment. These components control essential electrical functions like the ignition system, lights, and HVAC. Maintaining and inspecting the fuse box and relays is critical to ensure proper operation of electrical systems and avoid breakdowns.
MUST READ: DYI – How to Check Car Fuses?
(1996) Ford E-150 / E-250 / E-350 / E-450 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Ford E-150 / E-250 / E-350 / E-450 (1996) fuse assignment
Ford E-150 / E-250 / E-350 / E-450 Year of production: 1996

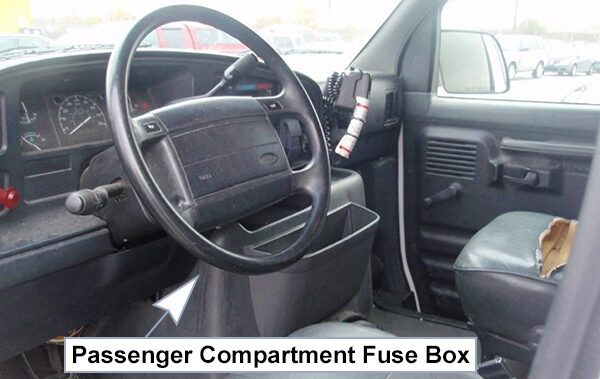

Passenger Compartment Fuse Box:

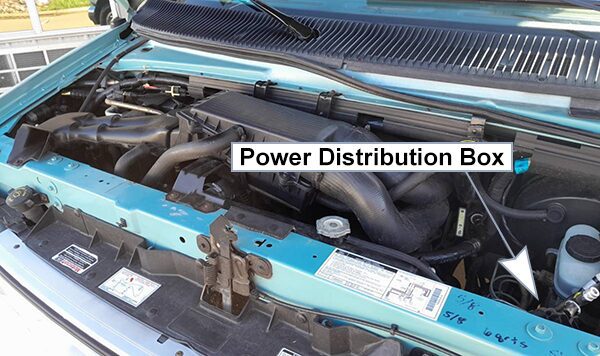

Power Distribution Box:
The high current fuses contained in the Power Distribution Box protect your vehicle’s main electrical systems from overloads; these fuses provide the connection between the battery and your vehicle’s electrical systems.
Fuse Box Diagrams
1996

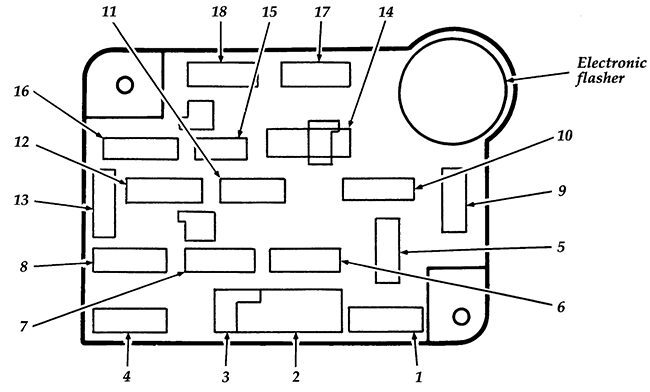

Passenger Compartment Fuse Box
List of fuses in the passenger compartment fuse box (1996)
| № | A | Description |
|---|---|---|
| 1 | 15A | Brake pressure switch DLC PSOM Speed control Stop/hazard/turn lamp |
| 2 | 30A | Wiper control module Windshield wiper motor |
| 3 | – | Not used |
| 4 | 20A | Flash-to-pass Instrument illumination License lamps Head and park lamps |
| 5 | 15A | Airbag module Auxiliary battery relay Back-up lamps Daytime running lamps (DRL) module Hazard lamps Shift lock actuator Transmission control switch Turn lamps |
| 6 | 20A | Accessory tap Anti-theft module Illuminated entry Remote keyless entry module Speed control Trailer battery charge relay |
| 7 | 10A | Anti-theft module Transmission range sensor Park/neutral position switch Powertrain control module (PCM) |
| 8 | 15A | Anti-theft indicator Courtesy iamp switch Dome/map lamp Illuminated entry Power mírrors Radio memory Remote keyless entry module Visor lamps |
| 9 | 15A | Air conditioner switch |
| 10 | 25A | Cigar lighter Power amplifier Rear power outlet |
| 11 | 15A | Headlamp switch Radio |
| 12 | 20A CB. | Anti-theft module Power door locks Memory lock module |
| 13 | 5A | Instrument panel illumination lamps |
| 14 | 20A C.B. | Power Windows |
| 15 | 20A | Air bag module |
| 16 | 30A | Modified vehicle power Power lumbar seats |
| 17 | 20A | Programmable speedometer/ odometer module (PSOM) Rear anti-lock brake system (RABS) |
| 18 | 15A | Instrument panel warning lamps Warning chime |

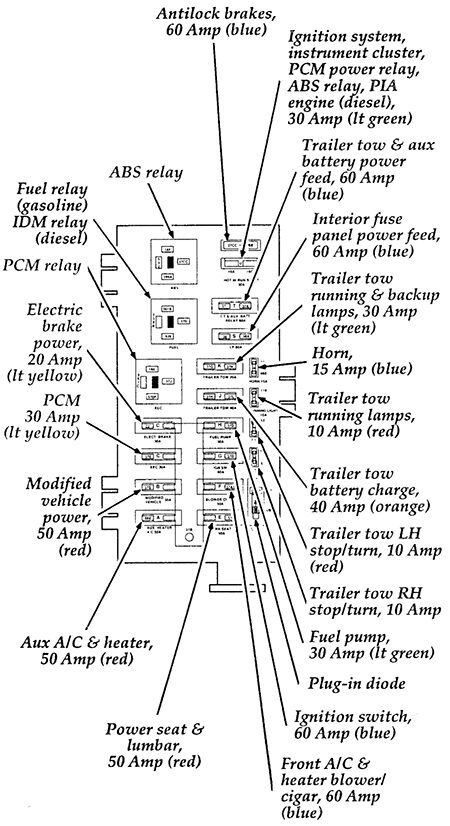

Power Distribution Box
Additional Fuses
| Circuit Protected | Type of Protection | Location |
|---|---|---|
| Glow Plug Right Bank | 14 Gauge Fuse Link | Starter Motor Relay |
| Glow Plug Left Bank | 14 Gauge Fuse Link | Starter Motor Relay |
| Alternator | 18 Gauge Fuse Link | Starter Motor Relay |
| Alternator | 12 Gauge Fuse Link (2) | Starter Motor Relay |
| Diesel PCM Relay/KAM | 16 Gauge 20 Gauge Fuse Link | Starter Motor Relay |
