Dodge Durango (HB) 2007-2009 fuse box and relay Diagrams

Learn about Dodge Durango (HB) 2007-2009 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.

The 2007-2009 Dodge Durango (HB) is a mid-size SUV designed to combine rugged performance with family-friendly features. It is available in multiple trims, including the base SXT, mid-level SLT, and top-tier Limited. Each trim offers a distinct level of comfort and capability, with options for either rear-wheel or all-wheel drive. Notably, the Durango is built with a spacious interior that seats up to seven passengers, making it suitable for larger families or long trips.

This model’s electrical system is critical in managing its various features, including power windows, lights, and the entertainment system. The fuse box and relays play an essential role in maintaining the functionality of these components. Located under the hood and sometimes under the dashboard, the fuse box houses fuses that protect each circuit. Relays control high-current systems like the air conditioning and starter motor, helping to regulate power flow efficiently. Regularly checking the fuses and relays can prevent electrical issues, ensuring the Durango continues to operate reliably.

MUST READ: DYI – How to Check Car Fuses?

(2007-2009) Dodge Durango (HB) fuse box and relay with Diagram

WARNING

• Never replace a fuse with one that has a higher amperage rating.
• A fuse with a too-high amperage could damage the electrical part and cause a fire.
• On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
• If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
• Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.

Dodge Durango (HB) 2007-2009 fuse assignment

Dodge Durango (HB) Year of production: 2007, 2008, 2009

Location of Fuse Boxes

Interior Fuses:
The fuse block contains blade-type mini-fuses, relays, and circuit breakers for high-current circuits. It is located in the left kick panel. It is accessible through a snap-in cover.

Underhood Fuses:

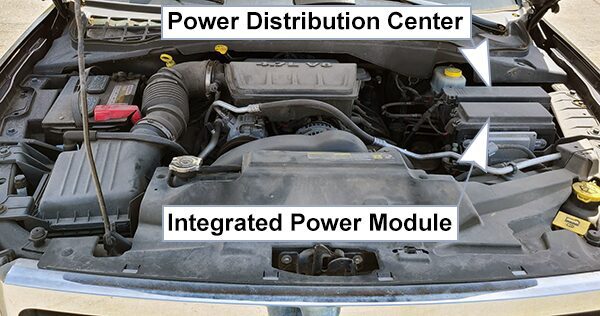

Two fuse boxes are located in the left side of the engine compartment. A description of each fuse and component may be stamped on the inside cover otherwise the cavity number of each fuse is stamped on the inside cover.

Fuse Box Diagrams

2007

Passenger Compartment Fuses

List of the interior fuses (2007)

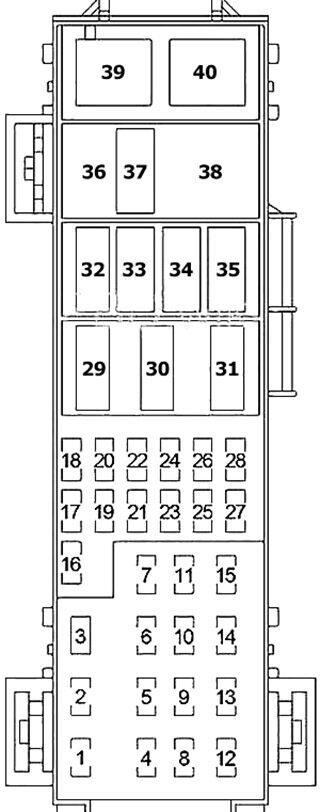

Power Distribution Center

List of fuses in the PDC (2007)

Integrated Power Module

List of fuses in the IPM (2007)

2008

Passenger Compartment Fuses

List of the interior fuses (2008)

Power Distribution Center

List of fuses in the PDC (2008)

Integrated Power Module

List of fuses in the IPM (2008)

2009

Passenger Compartment Fuses

List of the interior fuses (2009)

Power Distribution Center

List of fuses in the PDC (2009)

Integrated Power Module

List of fuses in the IPM (2009)

Conclusion

The 2007-2009 Dodge Durango offers a blend of power and comfort. Ensuring proper maintenance of the fuse box and relays is crucial for keeping its electrical systems and features running smoothly.
