Learn about Citroën C3 2009-2016 fuse box and relay’s locations, functions, and maintenance tips for optimal vehicle electrical system.
The Citroën C3 (2009-2016) is available in various body styles, including hatchback and convertible, offering a combination of practical urban driving and stylish design. The hatchback is popular for its compact dimensions, making it suitable for city commuting, while the convertible version features a panoramic windscreen, giving it a more open and airy feel.
An important aspect of maintaining this car is understanding its electrical components, especially the fuse box and relay, which control essential systems like lighting, air conditioning, and engine management. The fuse box, located under the dashboard or in the engine compartment, houses critical fuses that protect the electrical circuits. Relays, often near the fuse box, help manage high-power circuits like the starter or fuel pump. Regular inspection ensures the car’s electrical systems run smoothly.
MUST READ: DYI – How to Check Car Fuses?
(2009-2016) Citroën C3 fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C3 2009-2016 fuse assignment
- Cigar lighter (power outlet) fuses is the fuse F9 in the Instrument panel fuse box (since 2012 also fuse F8).
Year of production: from 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
Fuse box location

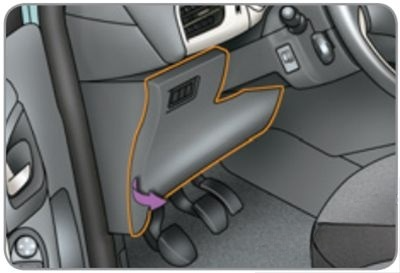

Dashboard fuse box

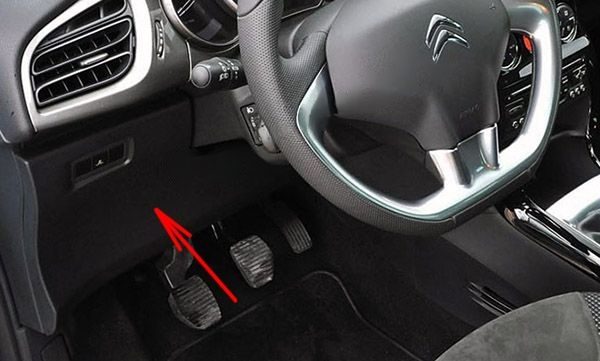

Left-hand drive vehicles:
It is located in the lower dashboard (left-hand side).
Unclip the cover by pulling on the side, remove the cover completely.

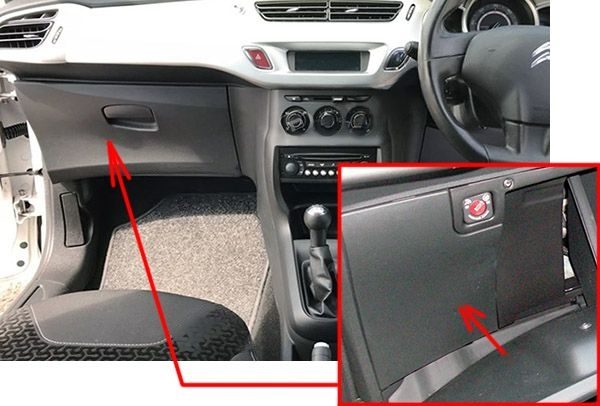

Right-hand drive vehicles:
It is placed in the lower section of the dashboard (left-hand side).

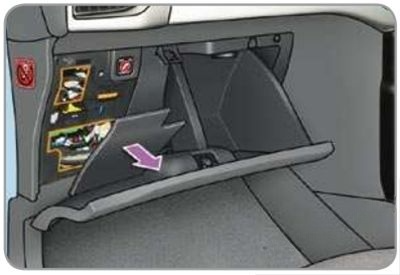

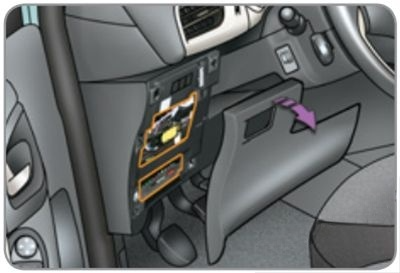

Open the glovebox lid, unclip the fusebox cover by pulling on the side, remove the cover completely.

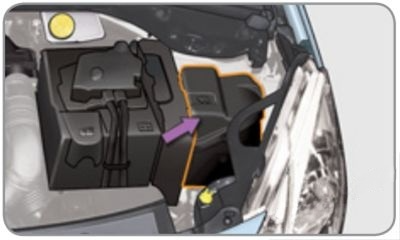

Engine compartment

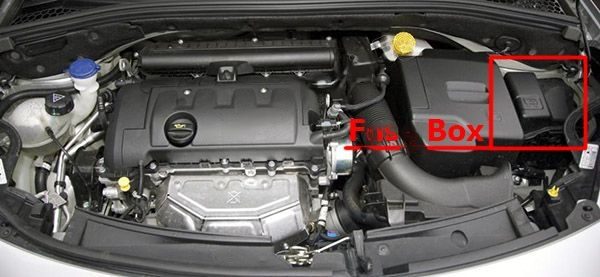

The fusebox is placed in the engine compartment near the battery (left-hand side).
Fuse box diagrams
2009
Dashboard

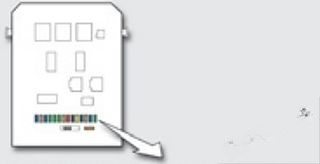

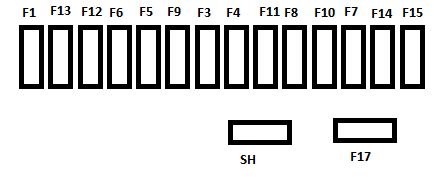

Assignment of the fuses in the Dashboard Fuse box (2009)
| № | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver’s electric window motor. |
| F7 | 5 A | Courtesy lamp, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren. |
| F9 | 30 A | Audio system (after-market), 12 V socket, portable navigation support supply. |
| F10 | 15 A | Steering wheel controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain/brightness sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit. |
| F14 | 15 A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifier. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and exterior mirrors demisting/ defrosting. |
| SH | – | PARC shunt. |

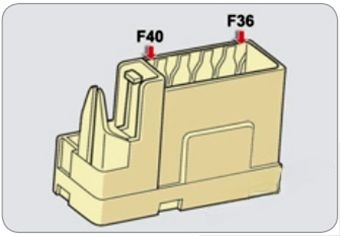

| FH36 | 5 A | Trailer relay unit. |
| FH37 | – | Not used. |
| FH38 | 20 A | HiFi amplifier. |
| FH39 | 20 A | Heated seats (except UK) |
| FH40 | 30 A | Trailer relay unit. |
Engine compartment

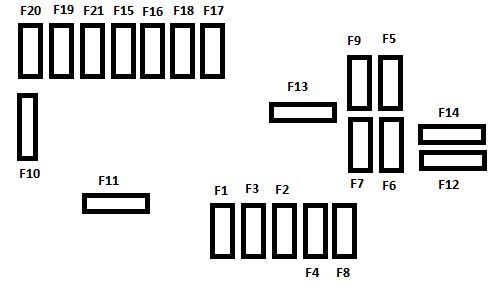

Assignment of the fuses in the Engine compartment (2009)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), EGR electrovalve (Diesel), fuel pump (1.1 i and 1.4i), blow-by heater and electrovalves (VTi). |
| F6 | 10 A | ABS/ESP control unit, secondary stop switch. |
| F7 | 10 A | Electric power steering, automatic gearbox. |
| F8 | 25 A | Starter control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1 i and 1.4i). |
| F11 | 40 A | Heater blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (VTi). |
| F15 | 10 A | Right-hand main beam headlamps. |
| F16 | 10 A | Left-hand main beam headlamps. |
| F17 | 15 A | Left-hand dipped beam headlamps. |
| F18 | 15 A | Right-hand dipped beam headlamps. |
| F19 | 15 A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel). |
| F20 | 10 A | Pumps, electronic thermostat (VTi) water in fuel sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, ABS/ESP. |
| Maxi-fuses: | ||
| MF1 | 60 A | Fan assembly. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP electrovalves. |
| MF4 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6 | – | Not used. |
| MF7 | – | Passenger compartment fusebox. |
| MF8 | – | Not used. |
2010
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2010)
| № | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver’s electric window motor. |
| F7 | 5 A | Courtesy lamp, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation radio, instrument panel with clock, alarm control unit, alarm siren. |
| F9 | 30 A | Audio system (after-market), 12 V socket, portable navigation support supply. |
| F10 | 15 A | Steering wheel controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain/brightness sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit. |
| F14 | 15 A | Parking assistance control unit, airbag control unit, instrument panel, automatic air conditioning, USB Box, HiFi amplifier. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and exterior mirrors demisting/ defrosting. |
| SH | – | PARC shunt. |
| FH36 | 5 A | Trailer relay unit. |
| FH37 | – | Not used. |
| FH38 | 20 A | HiFi amplifier. |
| FH39 | 20 A | Heated seats (except UK) |
| FH40 | 30 A | Trailer relay unit. |
Engine compartment
Assignment of the fuses in the Engine compartment (2010)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), fuel pump (1.1 i and 1.4i), blow-by heater and electrovalves (VTi). |
| F6 | 10 A | ABS/ESP control unit, secondary stop switch. |
| F7 | 10 A | Electric power steering, automatic gearbox. |
| F8 | 25 A | Starter control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Fuel heater (Diesel), blow-by heater (1.1i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1 i and 1.4i). |
| F11 | 40 A | Heater blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (VTi). |
| F15 | 10 A | Right-hand main beam headlamps. |
| F16 | 10 A | Left-hand main beam headlamps. |
| F17 | 15 A | Left-hand dipped beam headlamps. |
| F18 | 15 A | Right-hand dipped beam headlamps. |
| F19 | 15 A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel). |
| F20 | 10 A | Pumps, electronic thermostat (VTi) water in fuel sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, ABS/ESP. |
| Maxi-fuses: | ||
| MF1 | 60 A | Fan assembly. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP electrovalves. |
| MF4 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6 | – | Not used. |
| MF7 | – | Dashboard fusebox. |
| MF8 | – | Not used. |
2012
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2012)
| № | Rating | Functions |
|---|---|---|
| F1 | 15 A | Rear wiper. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochromatic mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver’s electric window motor. |
| F7 | 5 A | Courtesy lamp, glove box lighting, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply. |
| F9 | 30 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply, locking. |
| F10 | 15 A | Steering mounted controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain/sunshine sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit. |
| F14 | 15 A | Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, HiFi amplifier. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and door mirrors demisting/defrosting. |
| SH | – | PARC shunt. |
| FH36 | 5 A | Trailer relay unit. |
| FH37 | – | Not used. |
| FH38 | 20 A | Hi-Fi amplifier. |
| FH39 | 20 A | Heated seats (except UK) |
| FH40 | 40 A | Trailer relay unit. |
Engine compartment
Assignment of the fuses in the Engine compartment (2012)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), fuel pump (1.1 i and 1.4i), blow-by heater and electrovalves (VTi). |
| F6 | 10 A | ABS/ESP control unit, secondary brake lamp switch. |
| F7 | 10 A | Electric power steering, automatic gearbox. |
| F8 | 25 A | Starter motor control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Fuel heater (Diesel), blow-by heater (1.1 i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1 i and 1.4i). |
| F11 | 40 A | Heater blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (VTi). |
| F15 | 10 A | Right-hand main beam headlamps. |
| F16 | 10 A | Left-hand main beam headlamps. |
| F17 | 15 A | Left-hand dipped beam headlamps. |
| F18 | 15 A | Right-hand dipped beam headlamps. |
| F19 | 15 A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel). |
| F20 | 10 A | Pumps, electronic thermostat (VTi), water in fuel sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, ABS/ESP. |
| Maxi-fuses: | ||
| MF1 | 60 A | Fan assembly. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP electrovalves. |
| MF4 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6 | – | Not used. |
| MF7 | 80 A | Dashboard fusebox. |
| MF8 | – | Not used. |
2013, 2014, 2015, 2016
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2013, 2014, 2015, 2016)
| № | Rating | Functions |
|---|---|---|
| F1 | – | Not used. |
| F2 | – | Not used. |
| F3 | 5 A | Airbags and pretensioners control unit. |
| F4 | 10 A | Air conditioning, clutch switch, electrochrome mirror, particle filter pump (Diesel), diagnostic socket, airflow sensor (Diesel). |
| F5 | 30 A | Electric windows panel, passenger’s electric window control, front electric window motor. |
| F6 | 30 A | Rear electric windows motors and driver’s electric window motor. |
| F7 | 5 A | Courtesy lamp, glove box lighting, side reading lamps. |
| F8 | 20 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply. |
| F9 | 30 A | Multifunction screen, audio system, navigation and audio system, instrument panel with clock, alarm control unit, alarm siren, audio system (after-market), 12 V socket, portable navigation carrier power supply, locking. |
| F10 | 15 A | Steering mounted controls. |
| F11 | 15 A | Ignition, diagnostic socket, automatic gearbox control unit. |
| F12 | 15 A | Rain / sunshine sensor, trailer relay unit, driving school module. |
| F13 | 5 A | Main stop switch, engine relay unit, gear lever for electronic gearbox. |
| F14 | 15 A | Parking sensors control unit, airbag control unit, instrument panel, digital air conditioning, USB Box, HiFi amplifier, reversing camera. |
| F15 | 30 A | Locking. |
| F16 | – | Not used. |
| F17 | 40 A | Rear screen and door mirrors demisting/defrosting. |
| SH | – | PARC shunt. |
| FH36 | 5 A | Trailer relay unit. |
| FH37 | – | Not used. |
| FH38 | 20 A | Hi-Fi amplifier. |
| FH39 | 20 A | Heated seats (except UK) |
| FH40 | 40 A | Trailer relay unit. |
Engine compartment
Assignment of the fuses in the Engine compartment (2013, 2014, 2015, 2016)
| № | Rating | Functions |
|---|---|---|
| F1 | 20 A | Engine control unit supply, cooling fan unit control relay, multifunction engine control main relay, injection pump (Diesel). |
| F2 | 15 A | Horn. |
| F3 | 10 A | Front/rear wash-wipe. |
| F4 | 20 A | Daytime running lamps. |
| F5 | 15 A | Diesel heater (Diesel), particle filter additive pump (Diesel), air flow sensor (Diesel), fuel pump (1.1 i and 1.4i), blow-by heater and electrovalves (VTi). |
| F6 | 10 A | ABS/ESP control unit, secondary brake lamp switch. |
| F7 | 10 A | Electric power steering, automatic gearbox. |
| F8 | 25 A | Starter motor control. |
| F9 | 10 A | Switching and protection unit (Diesel). |
| F10 | 30 A | Fuel heater (Diesel), blow-by heater (1.1 i, 1.4i and Diesel), fuel pump (VTi), injectors and ignition coils (petrol), electronic thermostat and canister purge electrovalve (1.1 i and 1.4i). |
| F11 | 40 A | Heater blower. |
| F12 | 30 A | Windscreen wipers slow/fast speed. |
| F13 | 40 A | Built-in systems interface supply (ignition positive). |
| F14 | 30 A | Valvetronic supply (VTi). |
| F15 | 10 A | Right-hand main beam headlamps. |
| F16 | 10 A | Left-hand main beam headlamps. |
| F17 | 15 A | Left-hand dipped beam headlamps. |
| F18 | 15 A | Right-hand dipped beam headlamps. |
| F19 | 15 A | Oxygen sensors and electrovalves (VTi), electrovalves (Diesel), EGR electrovalve (Diesel). |
| F20 | 10 A | Pumps, electronic thermostat (VTi), water in fuel sensor (Diesel). |
| F21 | 5 A | Fan assembly control supply, ABS/ESP. |
| Maxi-fuses: | ||
| MF1 | 60 A | Fan assembly. |
| MF2 | 30 A | ABS/ESP pump. |
| MF3 | 30 A | ABS/ESP electrovalves. |
| MF4 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF5 | 60 A | Built-in Systems Interface (BSI) supply. |
| MF6 | – | Not used. |
| MF7 | 80 A | Dashboard fusebox. |
| MF8 | – | Not used. |
Conclusion
For owners and enthusiasts of classic Citroën C3 2009-2016, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
