The Citroën C-Zero (2010-2018) is a compact electric city car, designed for urban driving. Its single body style, a five-door hatchback, is built for efficiency and easy navigation through tight spaces. Equipped with an electric motor, the C-Zero delivers smooth and quiet performance. Inside, the vehicle includes basic features like air conditioning and power windows, alongside a simple, functional dashboard to optimize energy consumption and driving range.
Relating to the fuse box and relay, the C-Zero’s electrical system is crucial for managing its various electronic components, including the lights, wipers, and infotainment system. The fuse box protects these components from electrical surges by breaking circuits if needed, while relays control high-power circuits, ensuring safe operation. The fuse box is typically located under the dashboard, while relays are found near the engine bay. Regular checks and maintenance of these components can help prevent electrical malfunctions in the Citroën C-Zero.
MUST READ: DYI – How to Check Car Fuses?
(2010-2018) Citroën C-Zero fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C-Zero 2010-2018 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C-Zero is the fuse №2 in the Instrument panel fuse box.
Year of production: from 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018
Dashboard fuse box
Fuse box location
Unclip the cover and remove it completely by pulling it towards you.

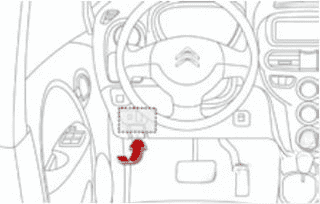

Left-hand drive vehicles:
The fusebox is placed in the lower dashboard (left-hand side)

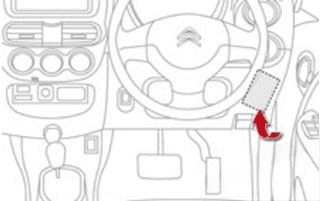

Right-hand drive vehicles:
The fusebox is placed in the lower dashboard (right-hand side)

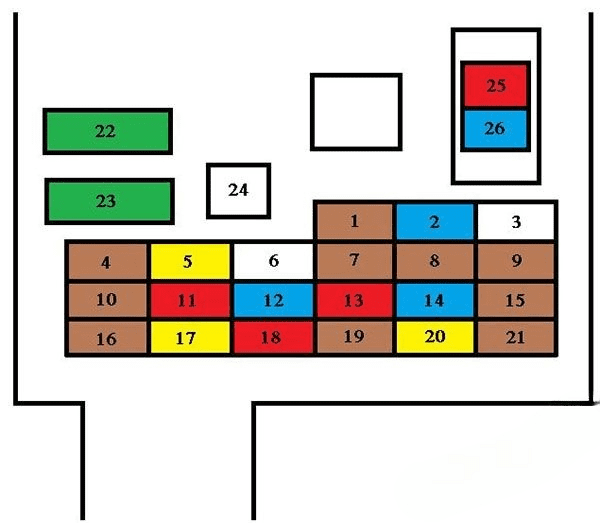

Fuse box diagram
Assignment of the fuses in the Dashboard Fuse box
| № | Rating | Functions |
|---|---|---|
| 1 | 7.5 A | Left hand front and rear sidelamps. |
| 2 | 15 A | Accessory socket. |
| 3 | – | Not used. |
| 4 | 7.5 A | Starter motor. |
| 5 | 20 A | Audio system. |
| 6 | – | Not used. |
| 7 | 7.5 A | Vehicle equipment, right hand front and rear sidelamps. |
| 8 | 7.5 A | Electric door mirrors. |
| 9 | 7.5 A | Supervisor controller. |
| 10 | 7.5 A | Air conditioning. |
| 11 | 10 A | Rear foglamp. |
| 12 | 15 A | Door locking. |
| 13 | 10 A | Courtesy lamp. |
| 14 | 15 A | Rear wiper. |
| 15 | 7.5 A | Instrument panel. |
| 16 | 7.5 A | Heating. |
| 17 | 20 A | Heated seat. |
| 18 | 10 A | Option. |
| 19 | 7.5 A | Door mirror heating. |
| 20 | 20 A | Windscreen wiper. |
| 21 | 7.5 A | Airbags. |
| 22 | 30 A | Heated rear screen. |
| 23 | 30 A | Heating. |
| 24 | – | Non used. |
| 25 | 10 A | Radio. |
| 26 | 15 A | Passenger compartment fuse. |
Front compartment fuse box
Fuse box location

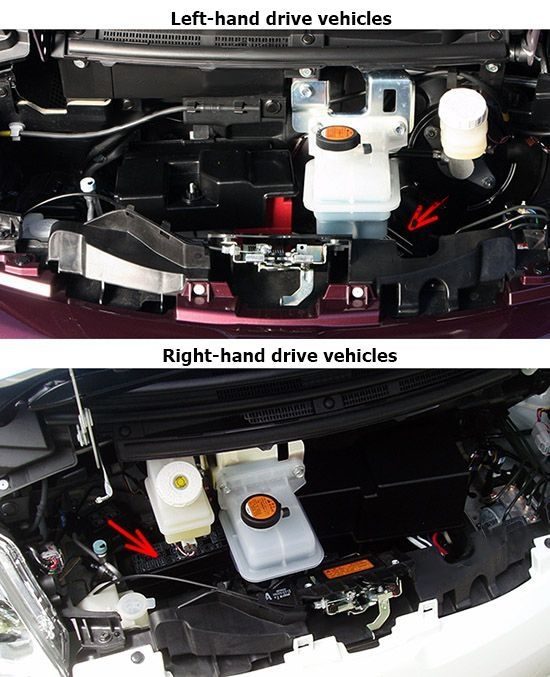

The fusebox is located in the front compartment under the heating system reservoir.
Open the bonnet, unclip the cover and remove it completely by pulling towards you.

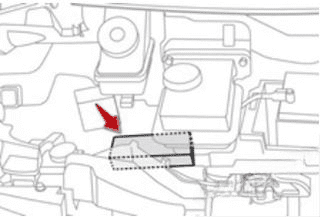

Left-hand drive vehicles

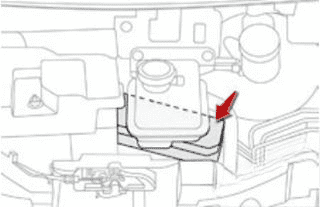

Right-hand drive vehicles

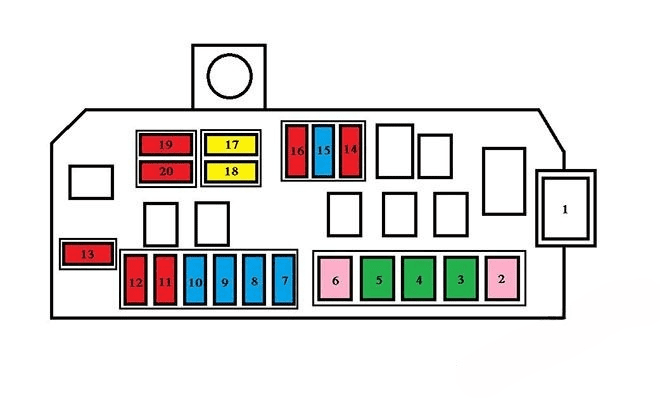

Fuse box diagram
Assignment of the fuses in the Engine compartment
| № | Rating | Functions |
|---|---|---|
| 1 | – | Not used. |
| 2 | 30 A | Internal fuse. |
| 3 | 40 A | Electric motor. |
| 4 | 40 A | Radiator fan. |
| 5 | 40 A | Electric windows. |
| 6 | 30 A | Vacuum pump. |
| 7 | 15 A | Main battery ECU. |
| 8 | 15 A | Third brake lamp. |
| 9 | 15 A | Front foglamps. |
| 10 | 15 A | Water pump. |
| 11 | 10 A | On-board charger. |
| 12 | 10 A | Direction indicator. |
| 13 | 10 A | Horn. |
| 14 | 10 A | Daytime running lamps. |
| 15 | 15 A | Battery fan. |
| 16 | 10 A | Air conditioning compressor. |
| 17 | 20 A | Right hand dipped beam. |
| 18 | 20 A | Left hand dipped beam, headlamp adjusters. |
| 19 | 10 A | Right hand main beam. |
| 20 | 10 A | Left hand main beam. |
