The Citroën C-Elysée (2012-2018) is a compact sedan that offers a spacious and comfortable ride, primarily available as a four-door body style. Known for its simplicity and practicality, the car is designed for everyday driving with efficient engines and essential features. When it comes to the electrical system, the C-Elysée houses a well-organized fuse box and relay setup, essential for managing various electrical components like lighting, climate control, and the infotainment system. The fuse box is typically located inside the cabin and under the hood, allowing for easy access in case of electrical troubleshooting or component replacement. Regular inspection of fuses and relays can help prevent electrical malfunctions and ensure the smooth operation of the vehicle’s key systems.
MUST READ: DYI – How to Check Car Fuses?
(2012-2018) Citroën C-Elysée fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Citroën C-Elysée 2012-2018 fuse assignment
- Cigar lighter (power outlet) fuse in the Citroen C-Elysée is the fuse F16 in the Instrument panel fuse box.
Year of production: from 2012, 2013, 2014, 2015, 2016, 2017, 2018
Fuse box location
Dashboard fuse box

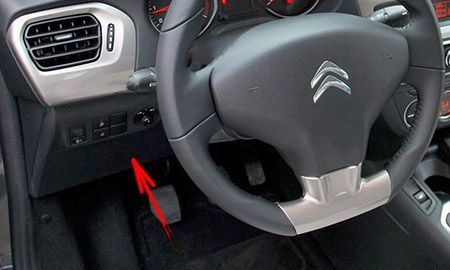

It is located in the lower dashboard (left-hand side).

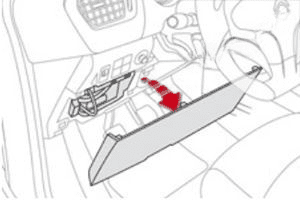

Unclip the cover by pulling at the top right, then left, disengage the cover completely and turn it over.
Engine compartment

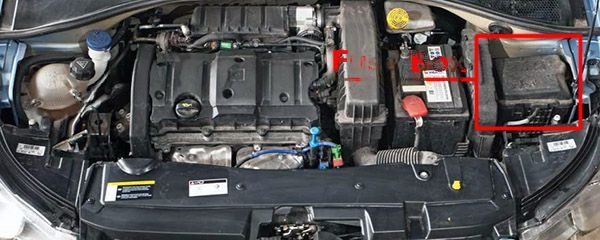

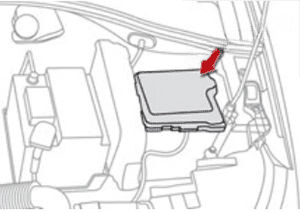

The fusebox is located in the engine compartment near the battery (left-hand side).
Fuse box diagrams
2012
Dashboard

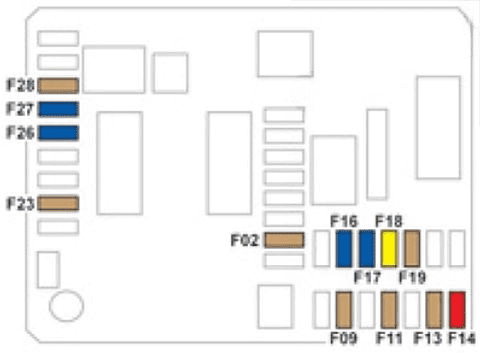

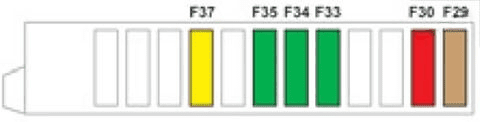

Assignment of the fuses in the Dashboard Fuse box (2012)
| № | Rating | Functions |
|---|---|---|
| F02 | 5 A | Headlamp adjusters, diagnostic socket, air conditioning panel. |
| F09 | 5 A | Alarm, alarm (accessory). |
| F11 | 5 A | Additional heating. |
| F13 | 5 A | Parking sensors, parking sensors (accessory). |
| F14 | 10 A | Air conditioning panel. |
| F16 | 15 A | Cigarette lighter, 12 V socket. |
| F17 | 15 A | Audio system, audio system (accessory). |
| F18 | 20 A | Audio system / Bluetooth, audio system (accessory). |
| F19 | 5 A | Monochrome screen C. |
| F23 | 5 A | Courtesy lamps, map reading lamps. |
| F26 | 15 A | Horn. |
| F27 | 15 A | Screenwash pump. |
| F28 | 5 A | Anti-theft. |
| F29 | 25 A | Heated rear window. |
| F30 | 10 A | Heated door mirrors. |
| F31 | – | Not used. |
| F32 | – | Not used. |
| F33 | 30 A | Front electric windows. |
| F34 | 30 A | Rear electric windows. |
| F35 | 30 A | Heated front seats. |
| F36 | – | Not used. |
| F37 | 20 A | Trailer interface. |
Engine compartment

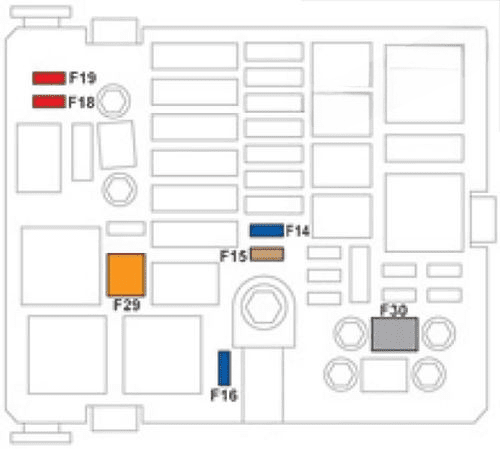

Assignment of the fuses in the Engine compartment
| № | Rating | Functions |
|---|---|---|
| F14 | 15 A | Heated lower windscreen. |
| F15 | 5 A | Air conditioning compressor. |
| F16 | 15 A | Front foglamps. |
| F18 | 10 A | Right hand main beam headlamp. |
| F19 | 10 A | Left hand main beam headlamp. |
| F29 | 40 A | Front wiper motor. |
| F30 | 80 A | Pre-heater plugs (Diesel). |
2015, 2016, 2017
Dashboard
Assignment of the fuses in the Dashboard Fuse box (2015, 2016, 2017)
| № | Rating | Functions |
|---|---|---|
| F02 | 5 A | Headlamp adjusters, diagnostic socket, air conditioning panel. |
| F09 | 5 A | Alarm, alarm (accessory). |
| F11 | 5 A | Additional heating. |
| F13 | 5 A | Parking sensors, parking sensors (accessory). |
| F14 | 10 A | Air conditioning panel. |
| F16 | 15 A | Cigarette lighter, 12 V socket. |
| F17 | 15 A | Audio system, audio system (accessory). |
| F18 | 20 A | Audio system / Bluetooth, audio system (accessory). |
| F19 | 5 A | Monochrome screen C. |
| F23 | 5 A | Courtesy lamps, map reading lamps. |
| F26 | 15 A | Horn. |
| F27 | 15 A | Screenwash pump. |
| F28 | 5 A | Anti-theft. |
| F29 | – | Not used. |
| F30 | 10 A | Heated door mirrors. |
| F31 | 25 A | Heated rear window |
| F32 | – | Not used. |
| F33 | 30 A | Front electric windows. |
| F34 | 30 A | Rear electric windows. |
| F35 | 30 A | Heated front seats. |
| F36 | – | Not used. |
| F37 | 20 A | Trailer interface. |
Engine compartment
Assignment of the fuses in the Engine compartment
| № | Rating | Functions |
|---|---|---|
| F14 | 15 A | Heated lower windscreen. |
| F15 | 5 A | Air conditioning compressor. |
| F16 | 15 A | Front foglamps. |
| F18 | 10 A | Right hand main beam headlamp. |
| F19 | 10 A | Left hand main beam headlamp. |
| F29 | 40 A | Front wiper motor. |
| F30 | 80 A | Pre-heater plugs (Diesel). |
Conclusion
For owners and enthusiasts of classic Citroën C-Elysée 2012-2018, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Citroën’s craftsmanship and innovation in the automotive industry during that era.
