(2000-2005) Chrysler Neon fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chrysler Neon 2000-2005 fuse assignment
- Cigar lighter (power outlet) fuse in the Chrysler Neon is the fuse №14 in the Power Distribution Center.
Year of production: from 2000, 2001, 2002, 2003, 2004, 2005
Underhood Fuses (Power Distribution Center)

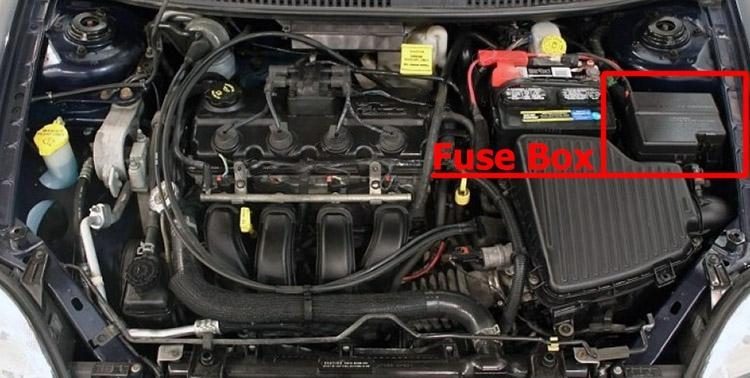

Fuse box location
A Power Distribution Center (PDC) is located in the engine compartment, next to the battery.
A label identifying the components and circuits is located on the underside of the cover.

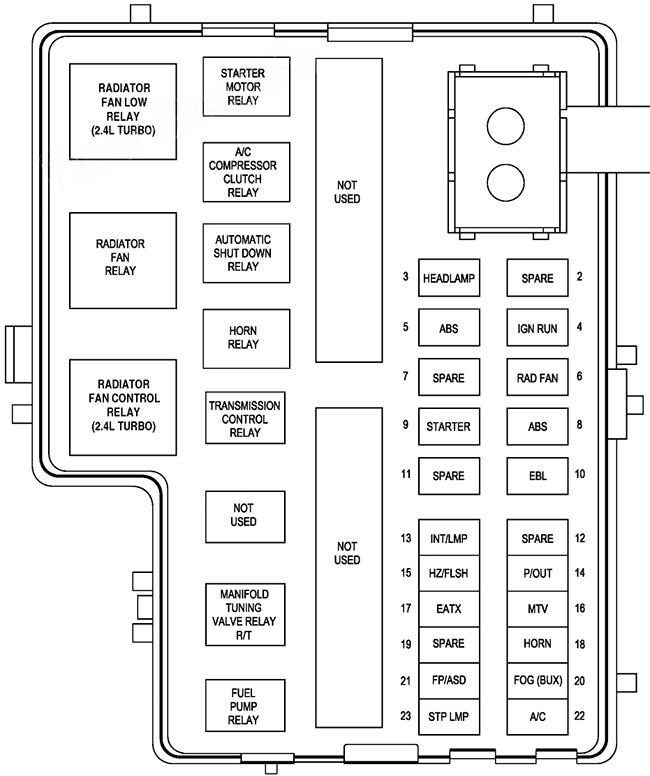

Fuse Box Diagram
Assignment of fuses in the Power Distribution center (2005)
| № | Amp/Color | Items Fused |
|---|---|---|
| MAXI FUSES: | ||
| 1 | — | — |
| 2 | — | — |
| 3 | 40 Amp/ Green | Headlamps |
| 4 | 40 Amp/ Green | Ignition Run |
| 5 | 30 Amp/Pink | ABS Solenoid |
| 6 | 30 Amp/Pink | Radiator Fan |
| 7 | Spare | |
| 8 | 40 Amp/ Green | ABS Pump |
| 9 | 30 Amp/Pink | Starter |
| 10 | 40 Amp/ Green | Electric Back Light (EBL) |
| MINI FUSES: | ||
| 11 | Spare | |
| 12 | Spare | |
| 13 | 20 Amp/ Yellow | IOD/Int Lighting/Radio |
| 14 | 20 Amp/ Yellow | Power Outlet |
| 15 | 15 Amp/Blue | Hazard Flasher |
| 16 | 15 Amp/Blue | MTV |
| 17 | 20 Amp/ Yellow | Electronic Automatic Transaxle (EATX) |
| 18 | 10 Amp/Red | Horn |
| 19 | Spare | |
| 20 | 20 Amp/ Yellow | Fog Lamp (Export Only) |
| 21 | 20 Amp/ Yellow | ASD/Fuel Pump |
| 22 | 10 Amp/Red | A/C Clutch |
| 23 | 15 Amp/Blue | Stop Lamps |
Interior Fuses
Fuse box location

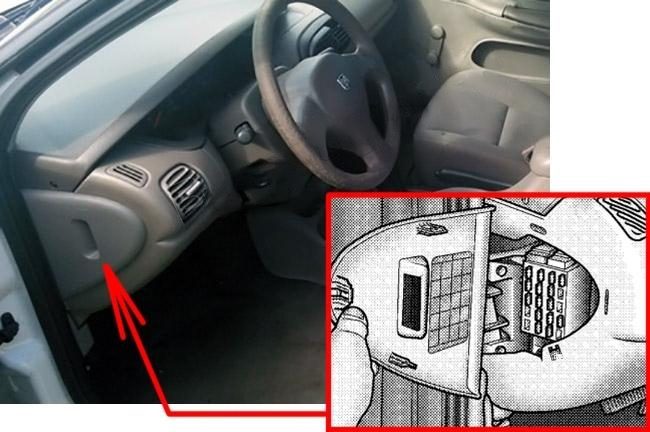

The fuse access panel is behind the end cover at the left side of the instrument panel.
To remove the panel, pull it out, as shown. A diagram identifying the components and circuits is located on the inside of the cover.

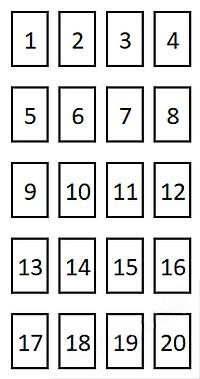

Fuse Box Diagram
Assignment of the interior fuses (2005)
| № | Amp/Color | Items Fused |
|---|---|---|
| 1 | 10 Amp/Red | Power Mirror/ Multifunction |
| 2 | 20 Amp/ Yellow | Wiper Switch/Motor |
| 3 | 20 Amp/ Yellow | Radio/Power Sunroof |
| 4 | 15 Amp/Blue | Interior Lighting |
| 5 | 10 Amp/Red | Airbag Run Only |
| 6 | 20 Amp/ Yellow | HVAC Blower |
| 7 | 10 Amp/Red | Backup Switch/EBL/ Temp/Comp |
| 8 | 15 Amp/Blue | High Headlamp |
| 9 | 10 Amp/Red | Airbag Run-Start |
| 10 | 15 Amp/Blue | ABS Engine Run Start |
| 11 | 10 Amp/Red | ARKEM Run Start |
| 12 | 10 Amp/Red | Ignition Off/Run/ Start |
| 13 | 20 Amp/ Yellow | Power Seat Height Adjust |
| 14 | 20 Amp/ Yellow | ARKEM Door Locks |
| 15 | 15 Amp/Blue | Exterior Lighting |
| 16 | 25 Amp/ Natural | Headlamp |
| 17 | 10 Amp/Red | Lt Low Beam Headlamp/ Headlamp Level Switch (Bux Only) |
| 18 | 10 Amp/Red | Rt Low Beam Headlamp/ Headlamp Level Motor |
| 19 | 10 Amp/Red | Fog lamps |
| 20 | Spare |
