The Chevrolet Prizm (1998-2002) is a compact sedan known for its reliability, fuel efficiency, and straightforward design. Built on the same platform as the Toyota Corolla, the Prizm features a clean, functional exterior and a practical interior layout. Its single body style—four-door sedan—caters to drivers seeking an affordable, efficient daily commuter with comfortable seating for up to five passengers.
The Prizm’s electrical components, from the lighting to the audio system, rely on well-organized fuse boxes and relays for proper function. The main fuse box is located under the dashboard on the driver’s side, while a secondary fuse box can be found in the engine compartment. Relays, responsible for high-power functions like the fuel pump and cooling fans, are positioned near these fuse boxes. Routine inspection of these components is essential to keep the Prizm’s electrical system operating smoothly and prevent potential issues.
MUST READ: DYI – How to Check Car Fuses?
(1998-2002) Chevrolet Prizm fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Prizm 1998-2002 fuse assignment
Chevrolet Prizm Year of production: 1998, 1999, 2000, 2001, 2002
Location of Fuse Boxes

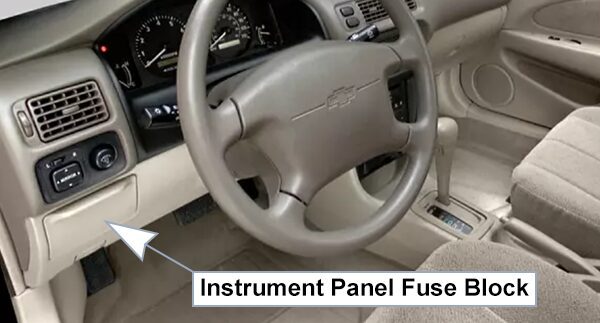

Instrument Panel Fuse Block:
The fuse block is located below the dimmer switch, behind the storage compartment cover.
To remove the storage compartment cover, do the following:
- Open the storage compartment door.
- Lift the storage compartment door cover up and off.

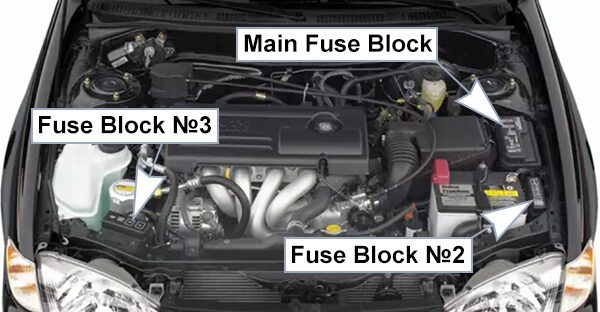

Engine Compartment Fuse Blocks:
Most of your vehicle’s fuses are in the engine compartment fuse block. Some are in three electrical centers in the engine compartment. These electrical centers also have relays, circuit breakers and other electrical components.
Fuse Box Diagrams
1999

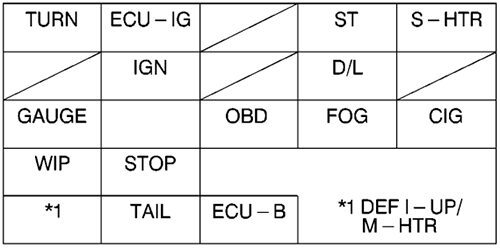

Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (1999)
| Fuse | Usage |
|---|---|
| TURN | Turn Signals |
| ECU-IG | ABS System, BTSI, Cruise Control, Cooling Fans |
| ST | Starting System |
| S-HTR | Not Used |
| IGN | Fuel Injection System, Charge Indicator, Air Bag System |
| D/L | Power Door Locks |
| GAUGE | RKE System, Sunroof, Power Windows, Rear Defogger, Warning Alarms, DRL, Gages, Heater, Generator, Backup Lamps |
| OBD | OBD II System |
| FOG | Not Used |
| CIG | Cigarette Lighter, Air Bags, Power Mirrors, BTSI, Radio |
| WIP | Windshield Wiper System |
| STOP | Stoplamps, BTSI |
| *1 | DEF System, Fuel Injection System |
| TAIL | Exterior Lamps, Instrument Panel Dimming |
| ECU-B | Air Bag Indicator |

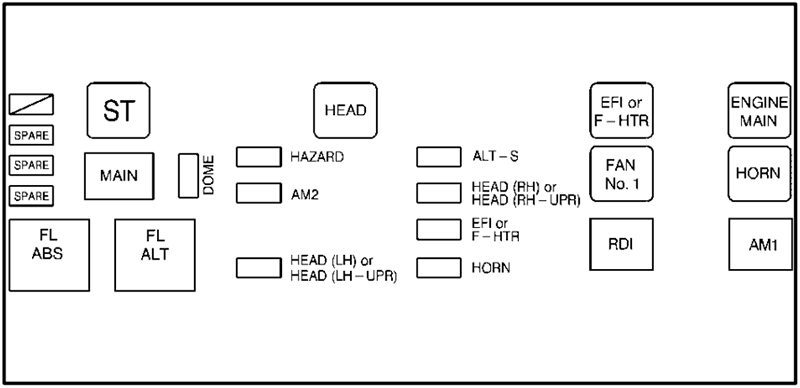

Main Engine Compartment Fuse Block
List of fuses in the Main Engine Compartment Fuse Block (1999)
| Fuse/Relay | Usage |
|---|---|
| FL ABS | ABS System |
| ST | Starting System (Relay) |
| MAIN | Starting System, Headlamps |
| FL ALT | Charging System, Cooling Fan |
| DOME | Sunroof, Dome Lamp, RKE System, Trunk Lamp, DRL, Radio, Warning Alarms |
| HEAD | Headlamp (Relay) |
| HAZARD | Hazard Lamps |
| AM2 | Starting System, Accessories |
| HEAD (LH) or HEAD (LH-UPR) | Left Headlamp (High Beam) |
| ALT-S | Charging System |
| HEAD (RH) or HEAD (RH-UPR) | Right Headlamp (High Beam) |
| EFI or F-HTR | Fuel Injection System |
| HORN | Horn System |
| EFI or F-HTR | Fuel Injection System (Relay) |
| FAN No. 1 | Cooling Fan (Relay) |
| RDI | Cooling Fan |
| ENGINE MAIN | Main Engine (Relay) |
| HORN | Horn System (Relay) |
| AM1 | Starting System, Air Bags |

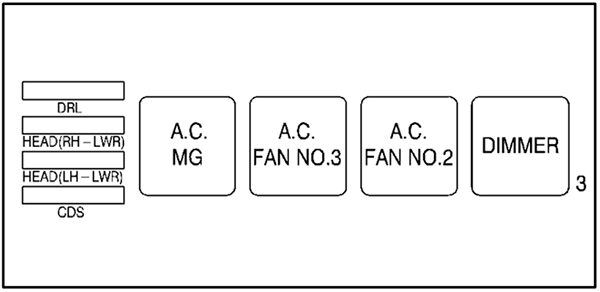

Engine Compartment Fuse Block â„–2
| Fuse/Relay | Usage |
|---|---|
| DRL | DRL System |
| HEAD (RH-LWR) | Right Headlamps (Low Beam) |
| HEAD (LH-LWR) | Left Headlamps (Low Beam) |
| CDS | A/C Condenser Fan |
| A.C. MG | Air Conditioning System (Relay) |
| A.C. FAN NO.3 | Air Conditioner Fan Relay #3 |
| A.C. FAN NO.2 | Air Conditioner Fan Relay #2 |
| DIMMER | Instrument Panel Dimming (Relay) |
Engine Compartment Fuse Block â„–3
| Fuse/Relay | Usage |
|---|---|
| A/C | Air Conditioning System |
| HTR | Heating System |
| HTR | Heating System (Relay) |
| DRL | DRL System (Relay) |
2000
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2000)
| Fuse | Usage |
|---|---|
| TURN | Turn Signals |
| ECU-IG | ABS System, Automatic Transaxle Shift Lock Control System, Cruise Control, Cooling Fans |
| ST | Starting System |
| S-HTR | Not Used |
| IGN | Fuel Injection System, Charge Indicator, Air Bag System |
| D/L | Power Door Locks |
| GAUGE | RKE System, Sunroof, Power Windows, Rear Defogger, Warning Alarms, DRL, Gages, Heater, Generator, Backup Lamps |
| OBD | OBD II System |
| FOG | Not Used |
| CIG | Cigarette Lighter, Air Bags, Power Mirrors, Automatic Transaxle Shift Lock Control System, Radio |
| WIP | Windshield Wiper System |
| STOP | Stoplamps, Automatic Transaxle Shift Lock Control System |
| *1 | DEF System, Fuel Injection System |
| TAIL | Exterior Lamps, Instrument Panel Dimming |
| ECU-B | Air Bag Indicator |
Main Engine Compartment Fuse Block
List of fuses in the Main Engine Compartment Fuse Block (2000)
| Fuse/Relay | Usage |
|---|---|
| SPARE | Not Used |
| FL ABS | SPARE |
| ST | Starting System (Relay) |
| MAIN | Starting System, Headlamps |
| FL ALT | Charging System, Cooling Fan |
| DOME | Sunroof, Dome Lamp, RKE System, Trunk Lamp, DRL, Radio, Warning Alarms |
| HEAD | Headlamp (Relay) |
| HAZARD | Hazard Lamps |
| AM2 | Starting System, Accessories |
| HEAD (LH) or HEAD (LH-UPR) | Left Headlamp (High Beam) |
| ALT-S | Charging System |
| HEAD (RH) or HEAD (RH-UPR) | Right Headlamp (High Beam) |
| EFI or F-HTR | Fuel Injection System |
| HORN | Horn System |
| EFI or F-HTR | Fuel Injection System (Relay) |
| FAN No. 1 | Cooling Fan (Relay) |
| RDI | Cooling Fan |
| ENGINE MAIN | Main Engine (Relay) |
| HORN | Horn System (Relay) |
| AM1 | Starting System, Air Bags |
Engine Compartment Fuse Block â„–2
| Fuse/Relay | Usage |
|---|---|
| DRL | DRL System |
| HEAD (RH-LWR) | Right Headlamps (Low Beam) |
| HEAD (LH-LWR) | Left Headlamps (Low Beam) |
| CDS | A/C Condenser Fan |
| A.C. MG | Air Conditioning System (Relay) |
| A.C. FAN NO.3 | Air Conditioner Fan Relay #3 |
| A.C. FAN NO.2 | Air Conditioner Fan Relay #2 |
| DIMMER | Instrument Panel Dimming (Relay) |
Engine Compartment Fuse Block â„–3
| Fuse/Relay | Usage |
|---|---|
| A/C | Air Conditioning System |
| HTR | Heating System |
| HTR | Heating System (Relay) |
| DRL | DRL System (Relay) |
2001
Instrument Panel Fuse 2001
List of fuses in the Instrument Panel Fuse Block (2001)
| Fuse | Usage |
|---|---|
| TURN | Turn Signals |
| ECU-IG | ABS System, Automatic Transaxle Shift Lock Control System, Cruise Control, Cooling Fans |
| ST | Starting System |
| S-HTR | Not Used |
| IGN | Fuel Injection System, Charge Indicator, Air Bag System |
| D/L | Power Door Locks |
| GAUGE | RKE System, Sunroof, Power Windows, Rear Defogger, Warning Alarms, DRL, Gages, Heater, Generator, Backup Lamps |
| OBD | OBD II System |
| FOG | Not Used |
| CIG | Cigarette Lighter, Air Bags, Power Mirrors, Automatic Transaxle Shift Lock Control System, Radio |
| WIP | Windshield Wiper System |
| STOP | Stoplamps, Automatic Transaxle Shift Lock Control System |
| *1 | DEF System, Fuel Injection System |
| TAIL | Exterior Lamps, Instrument Panel Dimming |
| ECU-B | Air Bag Indicator |
Main Engine Compartment Fuse Block
List of fuses in the Main Engine Compartment Fuse Block (2001)
| Fuse/Relay | Usage |
|---|---|
| SPARE | Not Used |
| FL ABS | SPARE |
| ST | Starting System (Relay) |
| MAIN | Starting System, Headlamps |
| FL ALT | Charging System, Cooling Fan |
| DOME | Sunroof, Dome Lamp, RKE System, Trunk Lamp, DRL, Radio, Warning Alarms |
| HEAD | Headlamp (Relay) |
| HAZARD | Hazard Lamps |
| AM2 | Starting System, Accessories |
| HEAD (LH) or HEAD (LH-UPR) | Left Headlamp (High Beam) |
| ALT-S | Charging System |
| HEAD (RH) or HEAD (RH-UPR) | Right Headlamp (High Beam) |
| EFI or F-HTR | Fuel Injection System |
| HORN | Horn System |
| EFI or F-HTR | Fuel Injection System (Relay) |
| FAN No. 1 | Cooling Fan (Relay) |
| RDI | Cooling Fan |
| ENGINE MAIN | Main Engine (Relay) |
| HORN | Horn System (Relay) |
| AM1 | Starting System, Air Bags |
Engine Compartment Fuse Block â„–2
| Fuse/Relay | Usage |
|---|---|
| DRL | DRL System |
| HEAD (RH-LWR) | Right Headlamps (Low Beam) |
| HEAD (LH-LWR) | Left Headlamps (Low Beam) |
| CDS | A/C Condenser Fan |
| A.C. MG | Air Conditioning System (Relay) |
| A.C. FAN NO.3 | Air Conditioner Fan Relay #3 |
| A.C. FAN NO.2 | Air Conditioner Fan Relay #2 |
| DIMMER | Instrument Panel Dimming (Relay) |
Engine Compartment Fuse Block â„–3
| Fuse/Relay | Usage |
|---|---|
| A/C | Air Conditioning System |
| HTR | Heating System |
| HTR | Heating System (Relay) |
| DRL | DRL System (Relay) |
2002
Instrument Panel Fuse Block
List of fuses in the Instrument Panel Fuse Block (2002)
| Fuse | Usage |
|---|---|
| TURN | Turn Signals |
| ECU-IG | ABS System, Automatic Transaxle Shift Lock Control System, Cruise Control, Cooling Fans |
| ST | Starting System |
| S-HTR | Not Used |
| IGN | Fuel Injection System, Charge Indicator, Air Bag System |
| D/L | Power Door Locks |
| GAUGE | RKE System, Sunroof, Power Windows, Rear Defogger, Warning Alarms, DRL, Gages, Heater, Generator, Backup Lamps |
| OBD | OBD II System |
| FOG | Not Used |
| CIG | Cigarette Lighter, Air Bags, Power Mirrors, Automatic Transaxle Shift Lock Control System, Radio |
| WIP | Windshield Wiper System |
| STOP | Stoplamps, Automatic Transaxle Shift Lock Control System |
| *1 | DEF System, Fuel Injection System |
| TAIL | Exterior Lamps, Instrument Panel Dimming |
| ECU-B | Air Bag Indicator |
Main Engine Compartment Fuse Block
List of fuses in the Main Engine Compartment Fuse Block (2002)
| Fuse/Relay | Usage |
|---|---|
| SPARE | Not Used |
| FL ABS | SPARE |
| ST | Starting System (Relay) |
| MAIN | Starting System, Headlamps |
| FL ALT | Charging System, Cooling Fan |
| DOME | Sunroof, Dome Lamp, RKE System, Trunk Lamp, DRL, Radio, Warning Alarms |
| HEAD | Headlamp (Relay) |
| HAZARD | Hazard Lamps |
| AM2 | Starting System, Accessories |
| HEAD (LH) or HEAD (LH-UPR) | Left Headlamp (High Beam) |
| ALT-S | Charging System |
| HEAD (RH) or HEAD (RH-UPR) | Right Headlamp (High Beam) |
| EFI or F-HTR | Fuel Injection System |
| HORN | Horn System |
| EFI or F-HTR | Fuel Injection System (Relay) |
| FAN No. 1 | Cooling Fan (Relay) |
| RDI | Cooling Fan |
| ENGINE MAIN | Main Engine (Relay) |
| HORN | Horn System (Relay) |
| AM1 | Starting System, Air Bags |
Engine Compartment Fuse Block â„–2
| Fuse/Relay | Usage |
|---|---|
| DRL | DRL System |
| HEAD (RH-LWR) | Right Headlamps (Low Beam) |
| HEAD (LH-LWR) | Left Headlamps (Low Beam) |
| CDS | A/C Condenser Fan |
| A.C. MG | Air Conditioning System (Relay) |
| A.C. FAN NO.3 | Air Conditioner Fan Relay #3 |
| A.C. FAN NO.2 | Air Conditioner Fan Relay #2 |
| DIMMER | Instrument Panel Dimming (Relay) |
Engine Compartment Fuse Block â„–3
| Fuse/Relay | Usage |
|---|---|
| A/C | Air Conditioning System |
| HTR | Heating System |
| HTR | Heating System (Relay) |
| DRL | DRL System (Relay) |
Conclusion
The Chevrolet Prizm (1998-2002) is a reliable compact sedan with essential electrical components. Proper maintenance of the fuse box and relays ensures continued functionality.
