The Chevrolet Equinox (2010-2017) is a popular compact SUV known for its comfort and versatility. The electrical system in the Equinox is crucial for managing various functions, and the fuse box and relays play a central role in protecting the vehicle’s components.
The fuse box is located in two main areas: under the hood in the engine compartment and inside the cabin, often on the passenger side. The engine compartment fuse box manages high-power systems, such as the engine control, cooling fans, and ABS. The interior fuse box controls lower-power systems like the radio, power windows, and interior lights. Each fuse is designed to prevent electrical overloads or short circuits by breaking the circuit when necessary.
Relays in the Equinox function as switches for high-current systems, such as the starter motor, fuel pump, and air conditioning. These relays allow low-current systems to control high-power circuits efficiently. Regularly checking the fuses and relays helps ensure the smooth operation of the electrical components, preventing breakdowns and keeping the SUV running reliably.
MUST READ: DYI – How to Check Car Fuses?
(2010-2017) Chevrolet Equinox fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Chevrolet Equinox 2010-2017 fuse assignment
- Cigar lighter / power outlet fuses in the Chevrolet Equinox are the fuses №13 (Auxiliary Power Front), №17 (Auxiliary Power Rear) in the Instrument panel fuse box and fuse №26 (Rear Accessory Power Outlet) in the Engine Compartment Fuse Box.
Year of production: from 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017
Instrument Panel Fuse Box

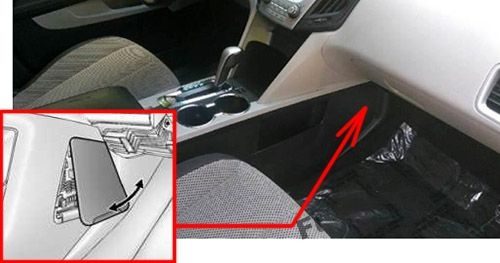

Fuse Box Location
It is located on the passenger side panel of the center console.

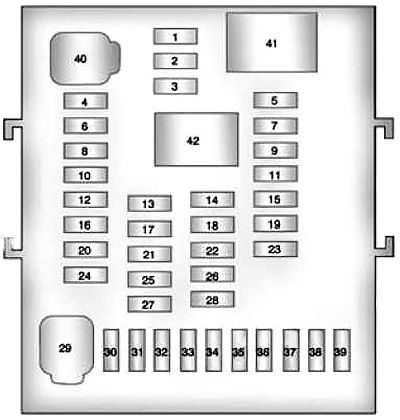

Fuse box diagram
Assignment of the fuses and relay in the Instrument Panel
| № | Usage |
|---|---|
| 1 | Steering Wheel Dimming |
| 2 | Spare |
| 3 | Spare |
| 4 | Body Control Module 1 |
| 5 | Infotainment |
| 6 | Body Control Module 7 |
| 7 | Noise Control Module |
| 8 | Body Control Module 4 |
| 9 | Radio |
| 10 | Spare |
| 11 | Rear Parking Assist Module |
| 12 | Heater, Ventilation, and Air Conditioning Battery |
| 13 | Auxiliary Power Front |
| 14 | Heater, Ventilation and Air Conditioning Ignition |
| 15 | Display |
| 16 | Body Control Module 5 |
| 17 | Auxiliary Power Rear |
| 18 | Instrument Panel Ignition |
| 19 | Universal Garage Door Opener |
| 20 | Body Control Module 6 |
| 21 | Spare |
| 22 | Sensing and Diagnostic Module Ignition |
| 23 | Front Camera |
| 24 | Spare |
| 25 | Transmission Gear Shift Position Indicator |
| 26 | Spare |
| 27 | Spare |
| 28 | Spare |
| 29 | Front Blower Motor |
| 30 | Body Control Module 3 |
| 31 | Amplifier |
| 32 | Discrete Logic Ignition Switch |
| 33 | Communications Integration Module |
| 34 | Body Control Module 2 |
| 35 | Sensing and Diagnostic Module Battery |
| 36 | Data Link Connection |
| 37 | Instrument Panel Battery |
| 38 | Passenger Sensing System Module |
| 39 | Spare |
| 40 | Body Control Module 8 |
| 41 | Logistic Relay (If Equipped) |
| 42 | Retained Accessory Power Relay |
Engine Compartment Fuse Box

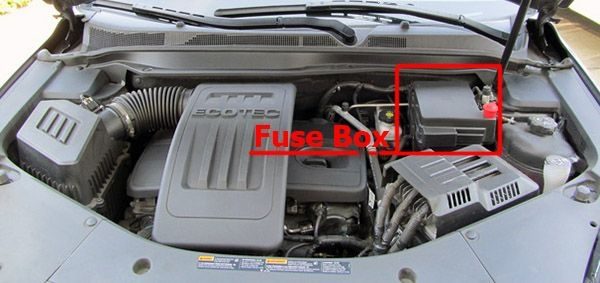

Fuse Box Location
It is located in the engine compartment, under the cover.

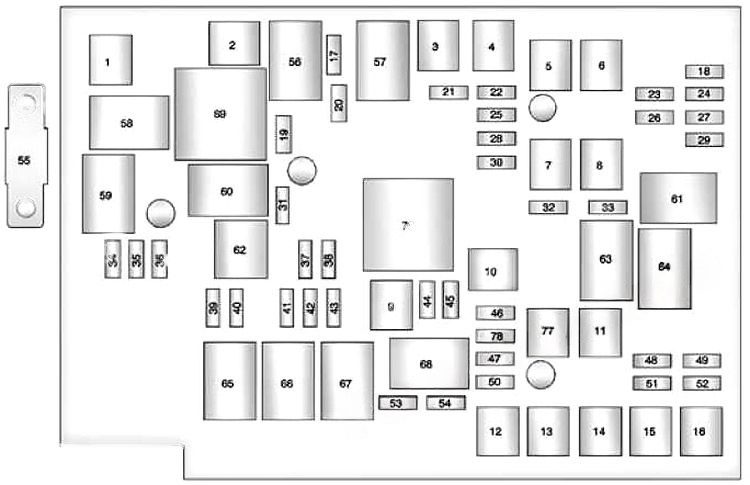

Fuse box diagram
Assignment of the fuses and relay in the Engine Compartment
| № | Usage |
|---|---|
| 1 | Cool Fan 1 |
| 2 | Cool Fan 2 |
| 3 | Brake Booster |
| 4 | Power Windows -Right |
| 5 | Memory Seat Module |
| 6 | Power Seat – Left |
| 7 | Instrument Panel Fuse Block 1 |
| 8 | Rear Defogger |
| 9 | Starter |
| 10 | AIR Pump Motor |
| 11 | Instrument Panel Fuse Block 2 |
| 12 | Sunroof |
| 13 | Antilock Brake System Pump |
| 14 | Instrument Panel Fuse Block 3 |
| 15 | Power Windows – Left |
| 16 | Antilock Brake System Module |
| 17 | Transmission Control Module Battery |
| 18 | Trailer Parking Light |
| 19 | AIR Pump Solenoid |
| 20 | Engine Control Module Battery |
| 21 | Canister Vent |
| 22 | Trailer Left Side (If Equipped) |
| 23 | Lift Gate Module |
| 24 | Power Lumbar |
| 25 | Trailer Right Side (If Equipped) |
| 26 | Rear Accessory Power Outlet |
| 27 | Memory Mirror Module |
| 28 | Regulated Voltage Control Battery Sensor |
| 29 | Front Wiper |
| 30 | Rear Wiper |
| 31 | Air Conditioning Compressor |
| 32 | Rear Latch |
| 33 | Heated Mirrors |
| 34 | Horn |
| 35 | Right High-Beam Headlamp |
| 36 | Left High-Beam Headlamp |
| 37 | Ignition Even Coil |
| 38 | Ignition Odd Coil |
| 39 | Windshield Washer |
| 40 | Front Fog Lamps |
| 41 | Post Catalytic Converter Oxygen Sensor |
| 42 | Engine Control Module |
| 43 | Pre-Catalytic Converter Oxygen Sensor |
| 44 | Transmission Control Module |
| 45 | Mirror |
| 46 | Fuel System Control Module Ignition |
| 47 | Spare |
| 48 | Rear Drive Module |
| 49 | Lift Gate Module Logic |
| 50 | Instrument Panel Fuse Block Ignition |
| 51 | Heated Seat- Front |
| 52 | Fuel System Control Module |
| 53 | Engine Control Module |
| 54 | Rear Vision Camera |
| 55 | Electric Power Steering |
| 56 | AIR Pump Solenoid |
| 57 | Brake Booster |
| 58 | Cooling Fan Low |
| 59 | Headlamp High Beam |
| 60 | Cooling Fan Control |
| 61 | Wiper On/Off Control |
| 62 | Air Conditioning Compressor |
| 63 | Rear Defogger |
| 64 | Wiper Speed |
| 65 | Fog Lamp |
| 66 | Engine Control |
| 67 | Starter |
| 68 | Run/Crank |
| 69 | Cooling Fan High |
| 70 | AIR Pump Motor |
| 77 | Power Seat – Right |
| 78 | Passenger Power Lumber |
Conclusion
For owners and enthusiasts of classic Chevrolet Equinox 2010-2017, understanding the fuse box and relay systems is essential for vehicle maintenance. Regular inspection and maintenance of these components helped ensure the vehicle’s longevity and reliability, preserving its status as a symbol of Chevrolet’s craftsmanship and innovation in the automotive industry during that era.
