The Bobcat S150 Skid Steer Loader is a versatile and compact machine designed for various construction, landscaping, and agricultural tasks. It’s known for its maneuverability, ease of operation, and attachment versatility.
Regarding electrical components like the fuse box and relay, they are essential for ensuring the reliable operation of the Bobcat S150. The fuse box protects electrical circuits from overloads, thereby preventing damage to critical components such as the engine, hydraulic systems, and control panel. Relays act as switches that control high-current circuits, allowing precise operation of functions like the loader arms, auxiliary attachments, and lights.
Proper maintenance of the fuse box and relays is crucial to avoid electrical issues that could disrupt operation on the job site. Operators and maintenance personnel regularly inspect and replace fuses as needed, and troubleshoot relay connections to maintain optimal performance of the Bobcat S150 Skid Steer Loader. This ensures efficiency and safety during its operation in diverse work environments.
MUST READ: DYI – How to Check Car Fuses?

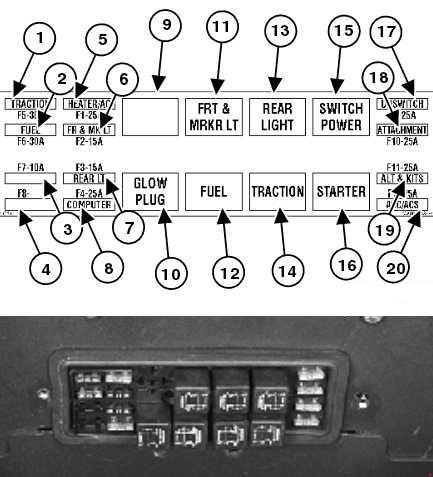

Bobcat S150 Skid Steer Loader fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Bobcat S150 Skid Steer Loader fuse assignment
Fuse Box
| No. | Ampere | Description |
|---|---|---|
| 1 | 30A | Traction |
| 2 | 30A | Fuel Shutoff |
| 3 | – | Not Used |
| 4 | – | Not Used |
| 5 | 25A | Heater |
| 6 | 15A | Front & Marker |
| 7 | 15A | Rear Lights |
| 8 | 25A | Bobcat Controller |
| 17 | 25A | Unswitched Attachments |
| 18 | 25A | Switched Attachments |
| 19 | 25A | Alternator & Accessories |
| 20 | 25A | Accessory Plug |
| Relay | ||
| 9 | Not Used | |
| 10 | Glow Plugs | |
| 11 | Front & Marker Lights | |
| 12 | Fuel Shutoff | |
| 13 | Rear Lights | |
| 14 | Traction | |
| 15 | Switch Power | |
| 16 | Starter | |
