The Bobcat 324 Mini Excavator is a compact and versatile machine used in construction and landscaping projects. It’s known for its maneuverability, powerful digging capabilities, and ease of operation in tight spaces. When it comes to electrical components like the fuse box and relay in the Bobcat 324, they play a crucial role in ensuring the excavator’s electrical systems operate reliably.
The fuse box protects electrical circuits from overloads, while relays help control high-current circuits. Proper maintenance of these components is essential to prevent electrical issues that could disrupt operation on the job site.
MUST READ: DYI – How to Check Car Fuses?
Bobcat 324 Mini Excavator fuse box and relay with Diagram
WARNING
- Never replace a fuse with one that has a higher amperage rating.
- A fuse with a too-high amperage could damage the electrical part and cause a fire.
- On no account should fuses be repaired (e.g. patched up with tin foil or wire) as this may cause serious damage elsewhere in the electrical circuit or cause a fire.
- If a fuse blows repeatedly, do not keep replacing it. Instead, have the cause for the repeated short circuit or overload tracked and fixed.
- Terminal and harness assignments for individual connectors will vary depending on vehicle equipment level, model, and market.
Bobcat 324 Mini Excavator fuse assignment

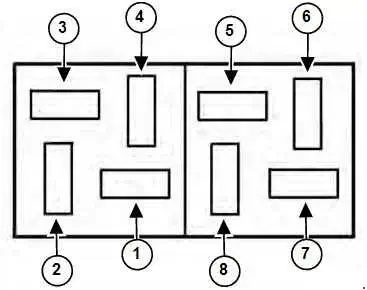

Fuse Box
| No. | Ampere | Description |
|---|---|---|
| 1 | 10A | Instrument – Hourmeter, Warning Buzzer and Fuel Gauge Back Light |
| 2 | 20A | Accessory – Accessory Connector, Heater and Horn. |
| 3 | 20A | Start – Key Switch, Unswitched Accessory Connector |
| 4 | 15A | Cab – Cab Power, Lights, Wiper and Dome Light |
| 5 | 15A | Power – Appliance Socket |
| 6 | 15A | Time Power – Stop Timer Module |
| 7 | 15A | Power – Stop Timer Module |
| 8 | – | Not Used |

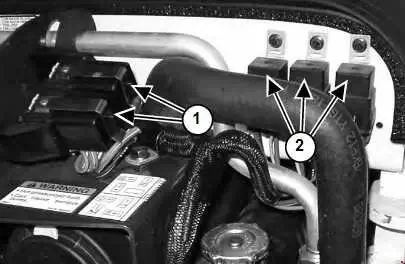

The excavator has a 12 volt, negative ground electrical system. The electrical system is controlled by fuses and relays located in the right side of the engine compartment (Items 1 and 2). The fuses will protect the electrical system when there is an electrical overload. The reason for the overload must be found and corrected before starting the engine again.
